800508
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

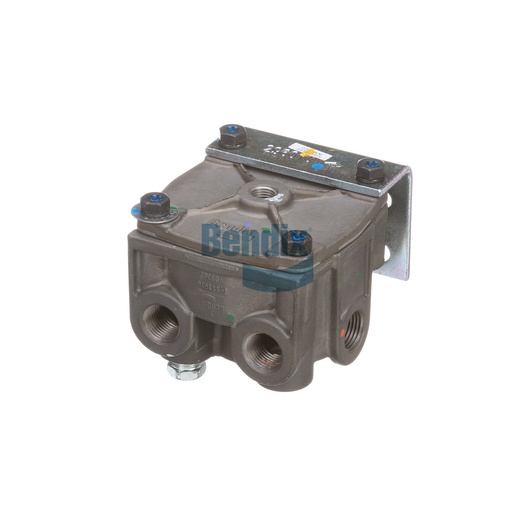

The Bendix Relay Valve is a critical component of the air brake system, designed to enhance the efficiency and responsiveness of braking operations. This valve plays a pivotal role in managing air pressure within the braking system, ensuring that air is delivered accurately and efficiently to the brake chambers. Constructed with robust materials, this relay valve is engineered to withstand the rigors of heavy-duty applications, providing reliable performance in demanding conditions. With multiple ports for versatile installation options, it allows for flexible configurations tailored to your vehicle's specific needs. By incorporating the relay valve into your braking system, you improve overall braking efficiency and safety, leading to enhanced vehicle control. For quality assurance, Source One Parts Center is the best destination for genuine Bendix OEM parts, guaranteeing high-performance components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT (Plugged)
Control / Secondary Service Port
1/4-18 NPT
Length
101.6 mm (4.0 in)
Width
101.6 mm (4.0 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT (Plugged)
Crack Pressure
5.5 PSI
Height
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Mounting Bracket Direction
Down
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.65 lb
