$91.95
$110.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

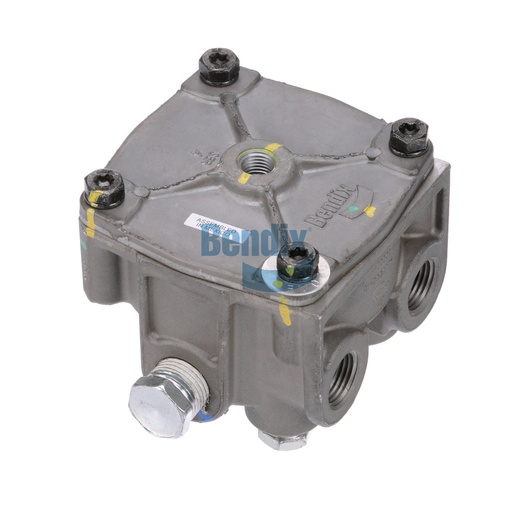

The Relay Valve is a critical component in the air brake system, designed to ensure efficient pressure control and distribution for optimal braking performance. With a robust body configuration capable of handling both supply and delivery ports, this valve is engineered to maintain consistent air pressure levels, enhancing the safety and responsiveness of your braking systems. The relay valve features a crack pressure of 4.0 PSI, ensuring that it engages at the right moment, providing reliable braking response even under heavy loads. Designed for easy installation with standard 1/2-14 NPT ports, this valve is compatible with various air brake systems, making it a versatile choice for fleet operators. For those seeking high-quality, reliable components for their vehicles, Source One Parts Center is the best place to acquire genuine Bendix OEM parts, guaranteeing optimal performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT (Plugged)
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT (Plugged)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Package Dimensions
4.0 x 4.0 x 4.0 in
Weight
2.38 lb
