This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

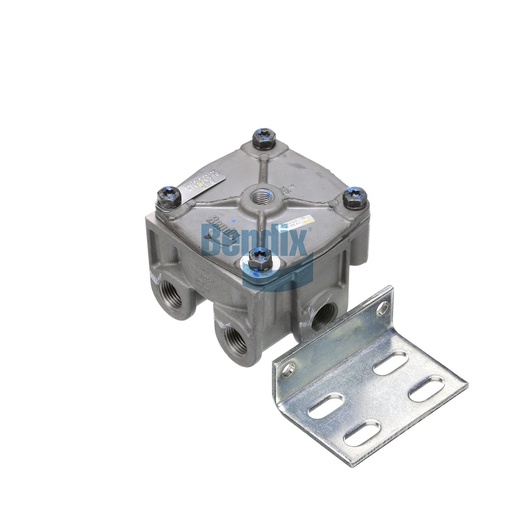

The Bendix Relay Valve is a vital component in the air brake system of commercial trucks, designed to optimize brake application and release. With a body configuration of 2 supply and 2 delivery ports, this valve ensures efficient air distribution, enhancing the responsiveness of the braking system. Its durable construction enables it to withstand extreme temperatures ranging from -40°F to 200°F, ensuring reliable performance in various weather conditions. The self-draining DuraDrain relay piston feature minimizes maintenance by preventing moisture accumulation, reducing the risk of corrosion and failure. This valve is compatible with a wide range of air brake systems, making it a versatile choice for fleet operators. For those seeking quality and reliability, Source One Parts Center is the go-to destination for authentic Bendix OEM parts, ensuring your vehicle runs smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848110,848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
Cautionary Note(s)
Product contains the DuraDrain relay piston for self-draining.
TMC Washer
RV055
Weight
2.91 lb
