288261

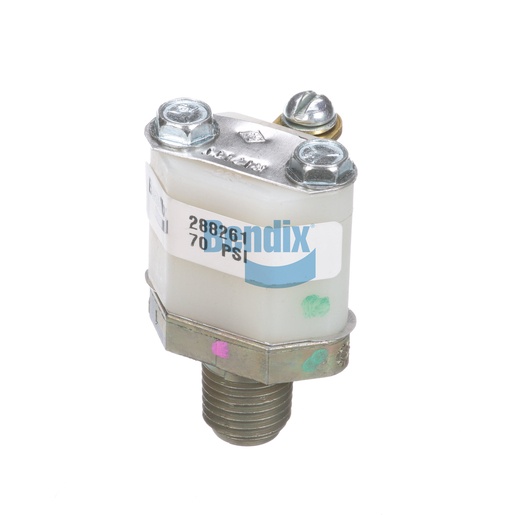

Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator from Bendix is an essential component for maintaining optimal air pressure levels in commercial vehicles. Designed to provide accurate and reliable readings, this device alerts drivers to any low air pressure conditions, ensuring safe and effective braking performance. The indicator features a robust construction that can withstand harsh operating environments, with a maximum operating temperature of 185°F and a minimum of -40°F, making it suitable for a wide range of applications. With a closing pressure of 70 ± 6 PSI, this pressure indicator helps to prevent potential failures in the air system by notifying operators in real-time. It is equipped with a single terminal configuration for easy installation and is compatible with a variety of Bendix systems. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, ensuring you receive high-quality components that meet the exact specifications of your commercial vehicle.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
32.0 mm (1.26 in)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
70 ± 6 PSI
Harmonized System (HS) Code
853650
Country of Origin
Mexico
Terminal Configuration
Single
Weight
0.11 lb
