286666N

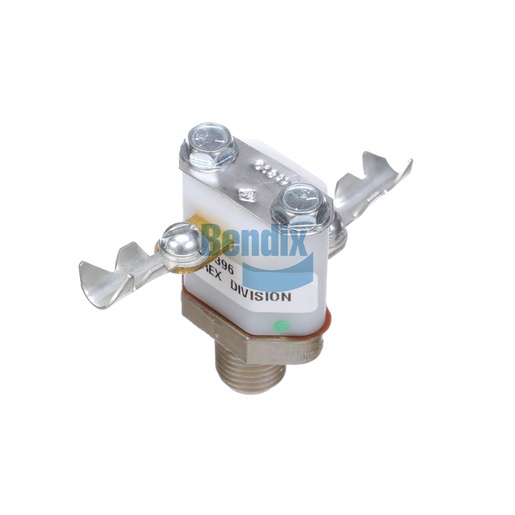

Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Stay informed about your vehicle's air pressure with the Bendix Pressure Indicator, a reliable device designed to enhance the safety and efficiency of your braking system. This indicator provides crucial feedback, allowing drivers to monitor air pressure levels effectively, which is essential for maintaining optimal braking performance. Weighing only 0.1 kg, its compact design makes installation straightforward, and its durable construction ensures longevity in various operating conditions. The Bendix Pressure Indicator is an important investment for fleet operators who prioritize safety and performance in their vehicles. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, providing you with reliable products tailored to your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
70 ± 6 PSI
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Weight
0.11 lb
