$51.95
$62.34

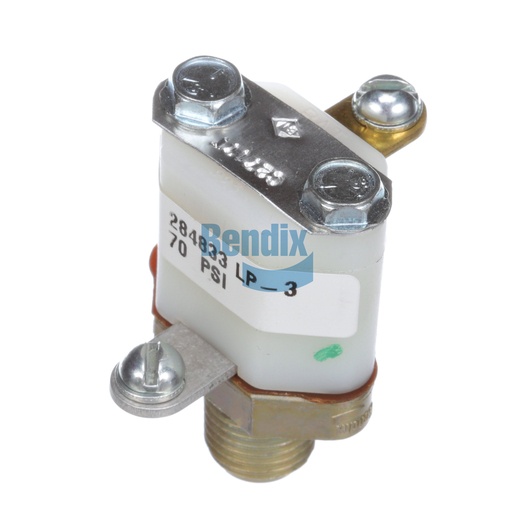

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator plays a crucial role in your truck's air brake system, providing essential feedback on the braking pressure to enhance safety and performance. This compact device is designed for easy installation and reliable operation, ensuring that you always have accurate information about your air pressure levels. Weighing just 0.1 kg, it is engineered to withstand diverse environmental conditions, maintaining performance even under extreme temperatures. The Pressure Indicator helps prevent brake system failure by alerting drivers to any significant drops in air pressure, allowing for timely maintenance and repairs. For those seeking reliable Bendix parts, Source One Parts Center is your best choice for genuine OEM components, ensuring that you receive quality products tailored for your commercial vehicle needs.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
70 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Package Dimensions
2.0 x 2.0 x 2.0 in
Weight
0.11 lb
