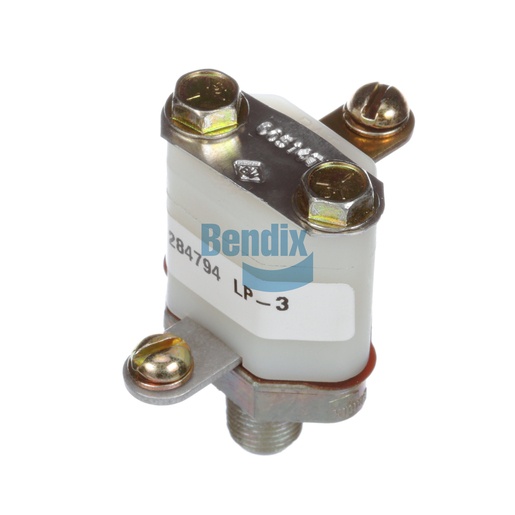

284794N
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is a crucial device for monitoring brake system pressure, ensuring that your vehicle operates within safe limits. This indicator is designed to provide clear and accurate readings, allowing for quick assessments of your braking system's performance. Built to withstand harsh conditions, it features a durable construction that ensures long-lasting functionality. With an easy installation process, this indicator integrates seamlessly into your existing brake system, enhancing safety and reliability. When looking for genuine Bendix parts, Source One Parts Center is the best choice for quality and performance.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Length
44.7 mm (1.76 in)
Height
49.3 mm (1.94 in)
Closing Pressure
60 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
