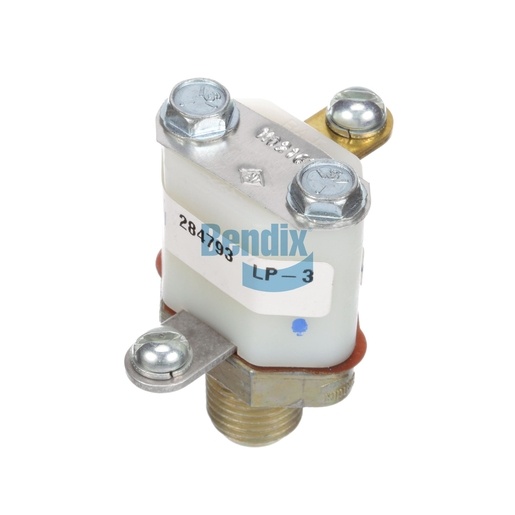

284793N
Pressure Indicator
Bendix
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$53.95
$64.74
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator from Bendix is a reliable solution for monitoring air pressure levels in your vehicle's braking system. This device offers precise readings, allowing drivers to ensure that the air pressure remains within safe operating limits. With a robust construction rated for both high and low temperatures, this pressure indicator is built to last, providing essential data to prevent brake failure. Its compatibility with various systems makes it a versatile addition to any commercial vehicle. For those looking to enhance their vehicle's safety features, this pressure indicator is an excellent choice. Source One Parts Center provides genuine Bendix OEM parts, ensuring that you receive the best quality and performance.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
80 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Package Dimensions
2.0 x 2.0 x 2.0 in
Weight
0.11 lb
