$58.95
$70.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

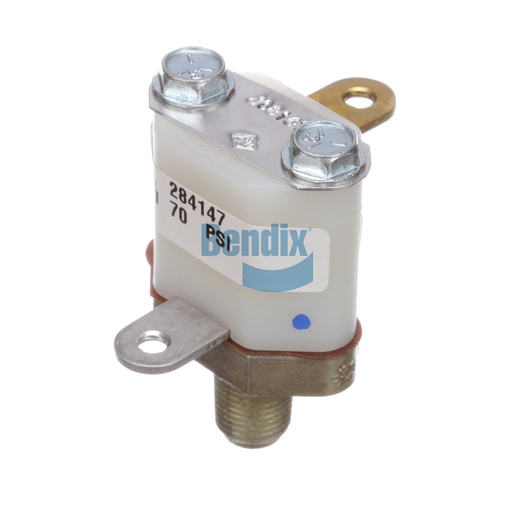

The Bendix Pressure Indicator is a vital component for monitoring the air pressure in your vehicle's braking system, ensuring that safety and performance are never compromised. This compact device is designed to provide real-time pressure readings, allowing drivers and fleet operators to detect issues before they escalate. With its robust construction and reliable performance, the pressure indicator contributes to the overall safety of the vehicle by ensuring that the air brake system operates within specified limits. Its compatibility with various Bendix systems makes it a versatile choice for different commercial vehicles. Regular monitoring with this pressure indicator can enhance vehicle reliability and safety on the road. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, ensuring high-quality components for your commercial fleet.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
70 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Package Dimensions
2.0 x 2.0 x 2.0 in
Weight
0.13 lb
