283708

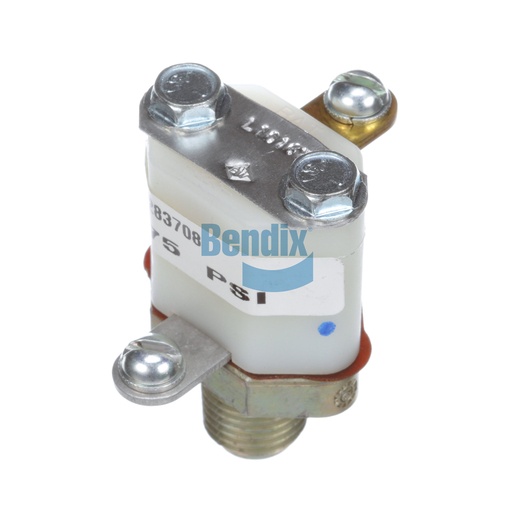

Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is an indispensable device for monitoring air pressure within commercial vehicle braking systems. This compact and lightweight indicator is designed to provide accurate readings, ensuring that drivers can maintain optimal air pressure levels for safe operation. Weighing only 0.1 kg (0.11 lb), it is easy to install and integrates seamlessly with existing Bendix systems. The pressure indicator operates effectively across a temperature range of -40 °F to 185 °F, making it suitable for various environments. With its reliable performance and durability, investing in a genuine Bendix Pressure Indicator enhances the safety and efficiency of your vehicle. For the best selection of Bendix OEM parts, turn to Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Length
44.7 mm (1.76 in)
Height
49.3 mm (1.94 in)
Opening Pressure
75 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
