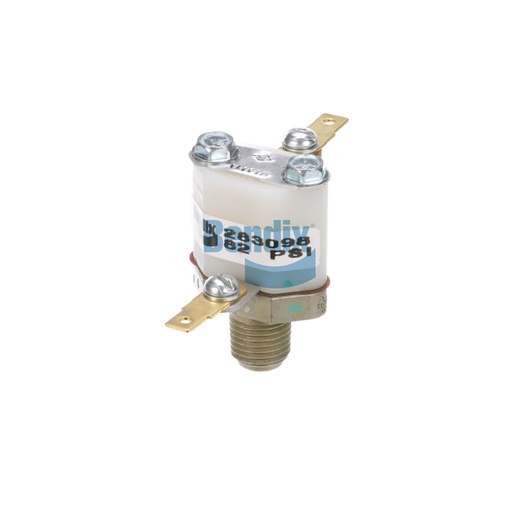

283098N
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is a critical component in maintaining safe air pressure levels within commercial vehicle braking systems. This reliable device is designed to provide real-time feedback on air pressure, allowing drivers to monitor system performance effectively. With a compact design and weighing only 0.1 kg (0.11 lb), it's easy to install without taking up much space. This indicator operates within a pressure range of 82 ± 6 PSI, ensuring precise monitoring of air pressure levels. It features a double terminal configuration for seamless connectivity, making it compatible with various Bendix systems. The pressure indicator is built to withstand extreme temperatures, with a maximum operating temperature of 185 °F (85 °C) and a minimum of -40 °F (-40 °C). Choosing the Bendix Pressure Indicator means enhanced safety and performance in your vehicle's braking system. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering quality you can count on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Terminal 1 Connector
1/4 SAE Type 1A Terminal
Terminal 2 Connector
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Length
76.2 mm (3.0 in)
Opening Pressure
82 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
