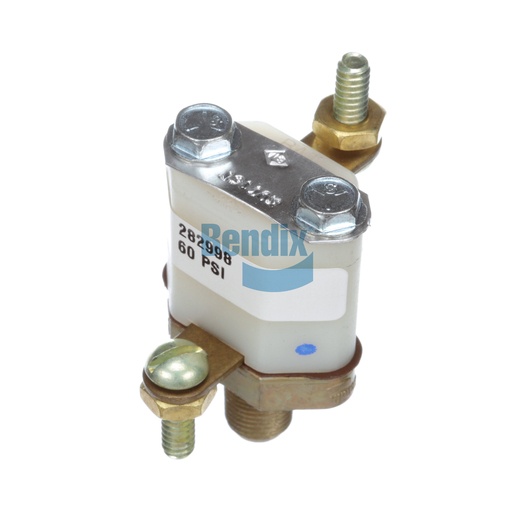

282998
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is an essential safety device for monitoring air pressure levels within the brake system. Designed to provide accurate readings, this component ensures that drivers are alerted to any drops in air pressure that could affect braking performance. With a compact design and easy installation, the pressure indicator features a robust construction that can withstand harsh environments encountered in commercial trucking. It operates effectively across a wide range of temperatures, ensuring reliability in both extreme heat and cold. The indicator is built to fit seamlessly within existing systems, providing peace of mind for drivers and fleet operators alike. For all your Bendix OEM parts needs, look no further than Source One Parts Center, where quality and service come first.
SPECIFICATIONS
Terminal 1 Connector
#10-24 UNC-3B
Terminal 2 Connector
#10-24 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Length
44.7 mm (1.76 in)
Height
55.9 mm (2.2 in)
Closing Pressure
60 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.13 lb
