DESCRIPTION

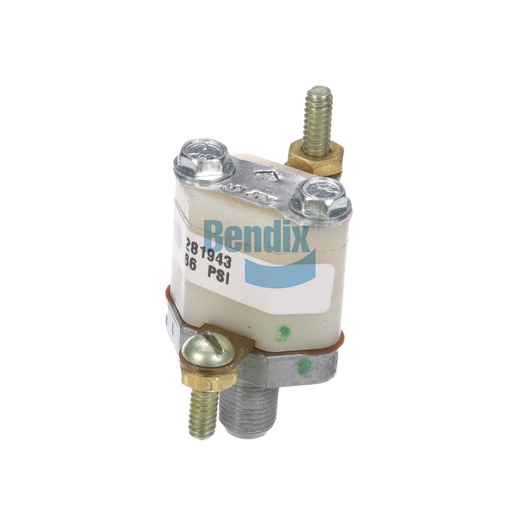

The Pressure Indicator from Bendix is a vital device for monitoring air pressure levels in your vehicle's brake system, ensuring safe and efficient operation. This compact indicator is designed for easy integration into your existing air brake setup, providing real-time feedback on system performance. Featuring a robust construction, it operates effectively within a temperature range from -40 °F to 185 °F, making it suitable for various environmental conditions. The indicator's current rating of 10 A and closing pressure of 66 ± 6 PSI ensures accurate readings, enabling drivers to maintain optimal braking conditions. Weighing just 0.11 pounds, this pressure indicator is lightweight and easy to install. For those seeking reliable and genuine Bendix OEM parts, Source One Parts Center is the best choice for all your commercial vehicle needs.
SPECIFICATIONS
Terminal 1 Connector
#10-24 UNC-3B
Terminal 2 Connector
#10-24 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Length
44.7 mm (1.76 in)
Height
55.9 mm (2.2 in)
Closing Pressure
66 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
