279472

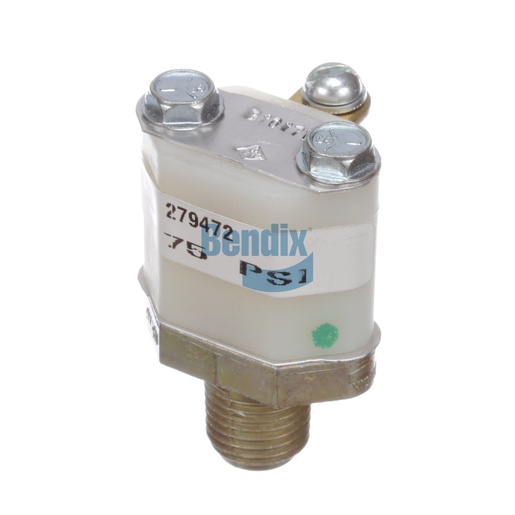

Pressure Indicator
Bendix
AVAILABLE
4 are currently available
Ships within 8-10 business days
$58.95
$70.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator by Bendix is an essential component designed for accurate monitoring of air pressure in commercial vehicles, ensuring safety and reliability on the road. This OEM part features a robust construction that withstands extreme temperatures ranging from -40°F to 185°F, making it suitable for a variety of operating conditions. With a closing pressure of 75 ± 6 PSI, this indicator provides precise alerts for low air pressure, helping drivers maintain optimal performance and avoid potential hazards. Its compact dimensions (32.0 mm x 49.3 mm) and lightweight design (0.1 kg) make installation straightforward, while the single terminal configuration allows for easy integration into existing systems. This pressure indicator not only enhances vehicle safety but also contributes to the longevity of your braking system by ensuring that air pressure levels are consistently monitored. Source One Parts Center is your go-to destination for purchasing genuine Bendix OEM parts, providing you with quality and peace of mind for your commercial vehicle needs.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
75 ± 6 PSI
Harmonized System (HS) Code
853650
Country of Origin
Mexico
Terminal Configuration
Single
Package Dimensions
2.0 x 2.0 x 2.0 in
Weight
0.11 lb
