$52.95
$63.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

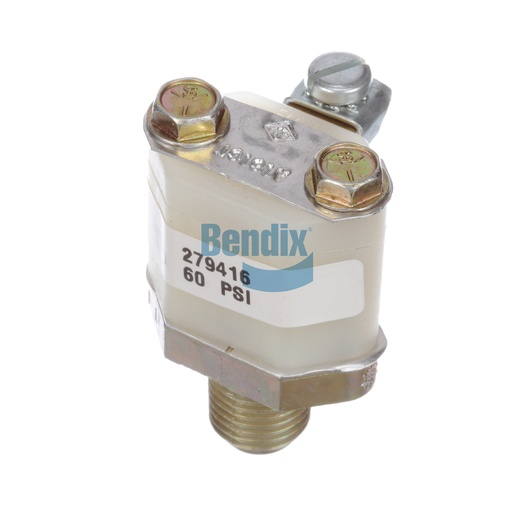

The Bendix pressure indicator is an essential device for monitoring the air pressure in your vehicle's braking system, providing critical information to maintain safety and efficiency. This reliable indicator is designed to operate under a range of conditions, with a maximum operating temperature of 185 °F and a minimum of -40 °F. Its compact design allows for easy installation, ensuring it fits seamlessly into your existing air brake setup. By providing real-time pressure readings, this indicator helps prevent potential brake failures, making it a vital component for fleet operators and truck owners. For sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the leading provider, ensuring you get the best quality for your commercial vehicle.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
60 ± 6 PSI
Harmonized System (HS) Code
902620,853650
Country of Origin
Mexico
Terminal Configuration
Single
Package Dimensions
2.0 x 2.0 x 2.0 in
Weight
0.11 lb
