DESCRIPTION

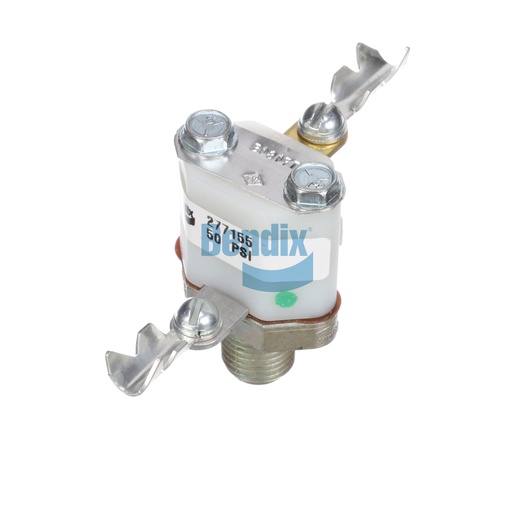

The Bendix Pressure Indicator plays a vital role in monitoring air pressure within your vehicle's braking system. This component is essential for alerting drivers to low pressure conditions, which can lead to brake system failures if not addressed promptly. It is designed to operate within a range of -40°F to 185°F, ensuring reliable performance in various climates and conditions. The high-quality construction ensures durability and longevity, making it a smart choice for fleet operators who prioritize safety and reliability. Easy to install and maintain, this pressure indicator helps ensure that your braking system remains in optimal working condition. Trust Source One Parts Center for genuine Bendix OEM parts, providing the reliability and quality you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
50 ± 5 PSI
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Weight
0.11 lb
