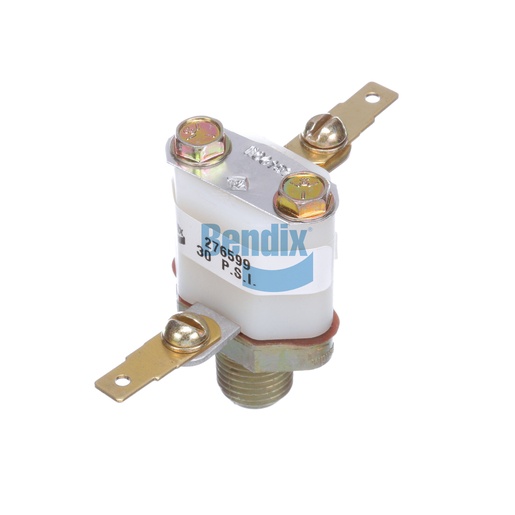

276599N
Pressure Indicator
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$26.95
$32.34
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is an essential device for monitoring air pressure levels in brake systems, ensuring that your vehicle operates safely and effectively. With a compact design and a net weight of 0.1 kg, this indicator is easy to install and integrates seamlessly into existing systems. It operates effectively within a wide temperature range and is designed to provide accurate readings, alerting operators to any pressure drops that could affect braking performance. The pressure indicator is crucial for maintaining compliance with safety regulations and ensuring the reliability of your braking system. For those seeking genuine Bendix OEM parts, Source One Parts Center is the premier source for quality components that help keep your vehicles safe on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Terminal 1 Connector
1/4 SAE Type 1A Terminal
Terminal 2 Connector
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
30 ± 3 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Package Dimensions
3.0 x 2.0 x 2.0 in
Weight
0.11 lb
