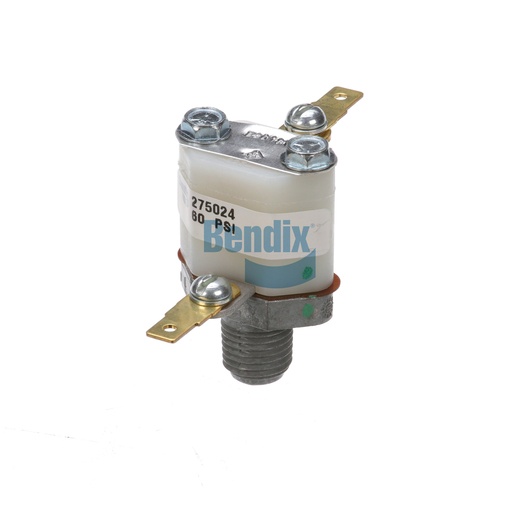

275024
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator is a vital component for monitoring the air pressure within the brake system of commercial vehicles. Its compact design and lightweight construction make it easy to install while providing accurate readings for optimal safety. This indicator is essential for alerting drivers to low air pressure conditions, helping to prevent potential brake failures and ensuring consistent performance. With a maximum operating temperature of 185°F, it is built to function reliably under demanding conditions. This part is crucial for maintaining the safety and integrity of your vehicle's braking system. For the best options in genuine Bendix parts, Source One Parts Center is your premier source for OEM components, ensuring you receive top quality for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Terminal 1 Connector
1/4 SAE Type 1A Terminal
Terminal 2 Connector
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
60 ± 6 PSI
Length
70.6 mm (2.78 in)
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
