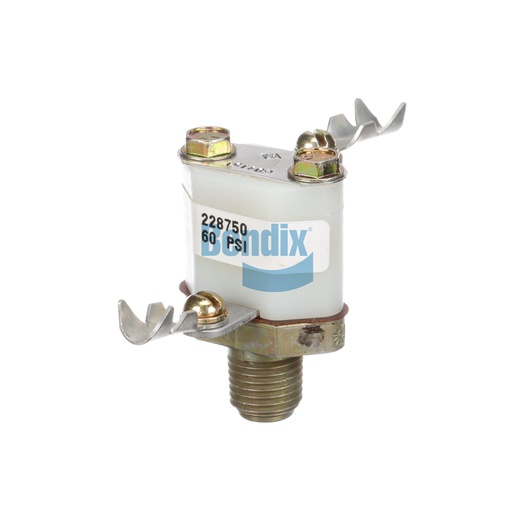

228750N
Pressure Indicator
Bendix
AVAILABLE
More than 10 are currently available
Ships within 3-5 business days
$49.95
$59.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Indicator serves as a critical component in monitoring your vehicle's air pressure levels, ensuring that your braking system operates within safe parameters. This device is designed to deliver accurate readings, helping drivers to maintain optimal braking performance and prevent potential failures due to low air pressure. With a compact design and easy installation, it fits seamlessly into your vehicle's existing systems. Its durability is backed by rigorous testing, ensuring reliable operation across various environmental conditions. The pressure indicator's compatibility with standard NPT fittings makes it versatile for different applications, providing an added layer of safety and peace of mind while on the road. For those seeking reliable and authentic Bendix products, Source One Parts Center is the premier destination for genuine OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
60 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Package Dimensions
3.0 x 2.0 x 2.0 in
Weight
0.11 lb
