102016N

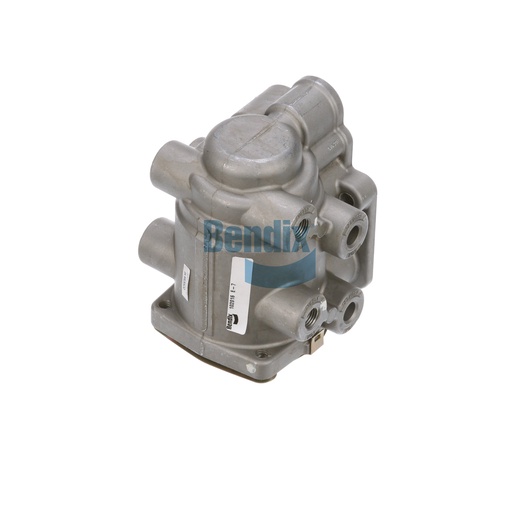

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a key component that plays a critical role in the braking system of commercial vehicles. Designed for durability and reliability, this valve ensures smooth operation and effective control of the brakes when engaged. Its robust construction is tailored for heavy-duty applications, making it an ideal choice for fleet operators who prioritize safety and performance. The well-engineered design allows for easy installation, ensuring that your vehicle's braking system remains efficient and responsive. When you're in the market for genuine Bendix OEM parts, Source One Parts Center is the best place to find high-quality products that meet your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Country of Origin
United States, Mexico
Weight
3.75 lb
