$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

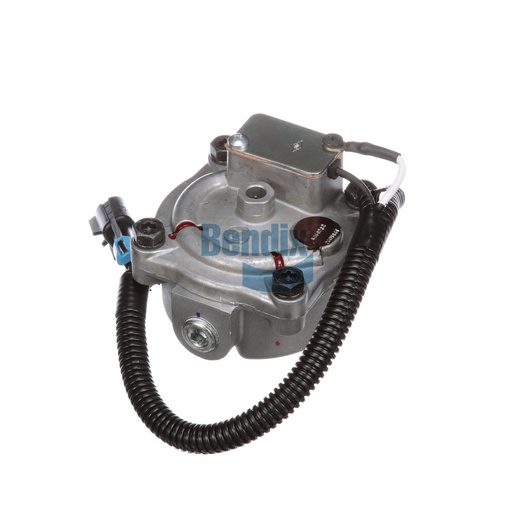

The Bendix Drain Valve is essential for maintaining the integrity of your truck's air brake system. This high-quality valve ensures efficient drainage of moisture and contaminants, promoting optimal performance and longevity of your braking components. Weighing only 0.5 kg, it is designed for easy installation and reliable operation, making it an ideal choice for both routine maintenance and emergency repairs. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your premier destination, providing quality that drivers can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
12.00 IN
Heater Rating
12V
Heater Orientation (CW from SUP Port)
180°
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Package Dimensions
4.0 x 4.0 x 4.0 in
Weight
1.19 lb
