106943N
Horn Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

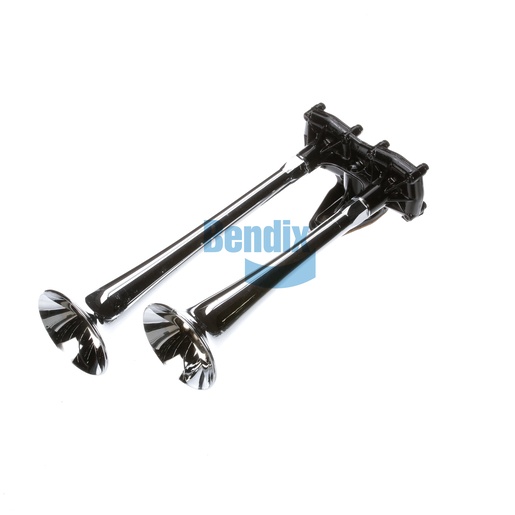

The Bendix horn valve is an essential component for enhancing the auditory warning systems in commercial vehicles. Manufactured in Mexico, this chrome-plated horn valve is designed to provide a reliable and powerful sound when activated, ensuring that your vehicle is heard in critical situations. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it can perform effectively in a variety of weather conditions. The valve features a 1/8-27 NPT supply port and is equipped with the necessary gasket for easy installation. Weighing only 1.4 kg (3.13 lb), it is compact yet offers substantial sound output for alerting other drivers and pedestrians. Additionally, its black body color ensures a sleek appearance that complements the vehicle's design. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as the premier destination for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-001: Horn Assembly - Air
Supply Port
1/8-27 NPT
Height
109.5 mm (4.31 in)
Left Bell Length
13.060 IN
Right Bell Length
15.810 IN
Maximum Operating Temperature
200 °F (93 °C)
Length
401.6 mm (15.81 in)
Width
491.2 mm (19.34 in)
Harmonized System (HS) Code
851230
Body Color
Black
Bell Color
Chrome Plated
Country of Origin
Mexico
Lockwasher Included
No
Nut Included
No
Washer Included
No
Gasket Included
Yes
Mounting
Ø .350 Hole / 5/8-18 UNF-3A THD
Weight
3.13 lb
