DESCRIPTION

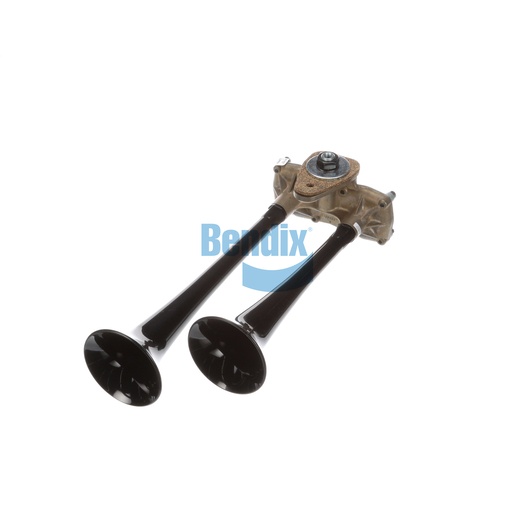

The Horn Valve is an essential component in the air system of commercial vehicles, providing reliable control over air supply to the horn. This valve is designed with durability in mind, featuring a chrome-plated actuator that ensures long-lasting performance even in harsh conditions. Its lightweight design facilitates easy installation, making it suitable for fleet maintenance or individual truck repairs. With an operational temperature range from -40°F to 200°F, this valve is built to perform effectively in a variety of environments. When you need authentic Bendix OEM parts, Source One Parts Center is the best choice, ensuring your vehicle is equipped with high-quality components that meet stringent performance standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-001: Horn Assembly - Air
Supply Port
1/8-27 NPT
Right Bell Length
13.060 IN
Height
130.2 mm (5.13 in)
Left Bell Length
15.810 IN
Maximum Operating Temperature
200 °F (93 °C)
Length
401.6 mm (15.81 in)
Width
465.8 mm (18.34 in)
Harmonized System (HS) Code
851230
Body Color
Black
Bell Color
Chrome Plated
Country of Origin
Mexico
Gasket Included
Yes
Lockwasher Included
Yes
Nut Included
Yes
Washer Included
Yes
Mounting
Ø .350 Hole / 5/8-18 UNF-3A THD
Weight
3.24 lb
