101495

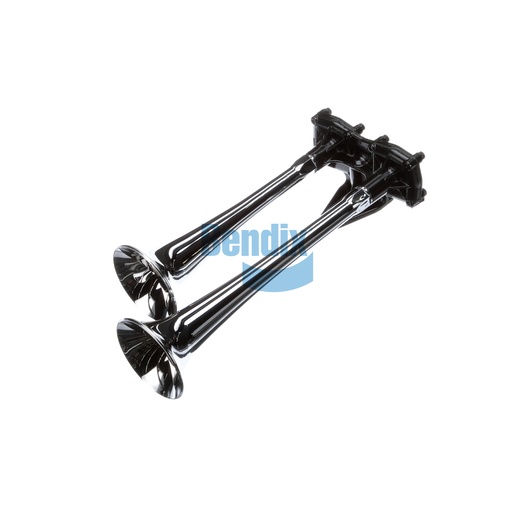

Horn Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Horn Valve is an essential component for the air horn system in your commercial vehicle, ensuring that your horn operates effectively when needed. This valve is designed to manage the airflow to the horn, providing a reliable and powerful sound that enhances safety on the road. Built with durable materials, it withstands the rigors of heavy-duty applications, ensuring long-lasting performance. With easy installation and compatibility with various systems, this horn valve is a practical addition to any vehicle. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality assurance and customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-001: Horn Assembly - Air
Supply Port
1/8-27 NPT
Right Bell Length
13.060 IN
Height
130.2 mm (5.13 in)
Left Bell Length
15.810 IN
Maximum Operating Temperature
200 °F (93 °C)
Width
288.0 mm (11.34 in)
Length
401.6 mm (15.81 in)
Harmonized System (HS) Code
851230
Body Color
Black
Bell Color
Chrome Plated
Country of Origin
Mexico
Gasket Included
No
Washer Included
No
Lockwasher Included
Yes
Nut Included
Yes
Mounting
Ø .350 Hole / 5/8-18 UNF-3A THD
Weight
3.48 lb
