K152688
Chamber, BDX, ADB, S24, RH, 135, 215
Bendix

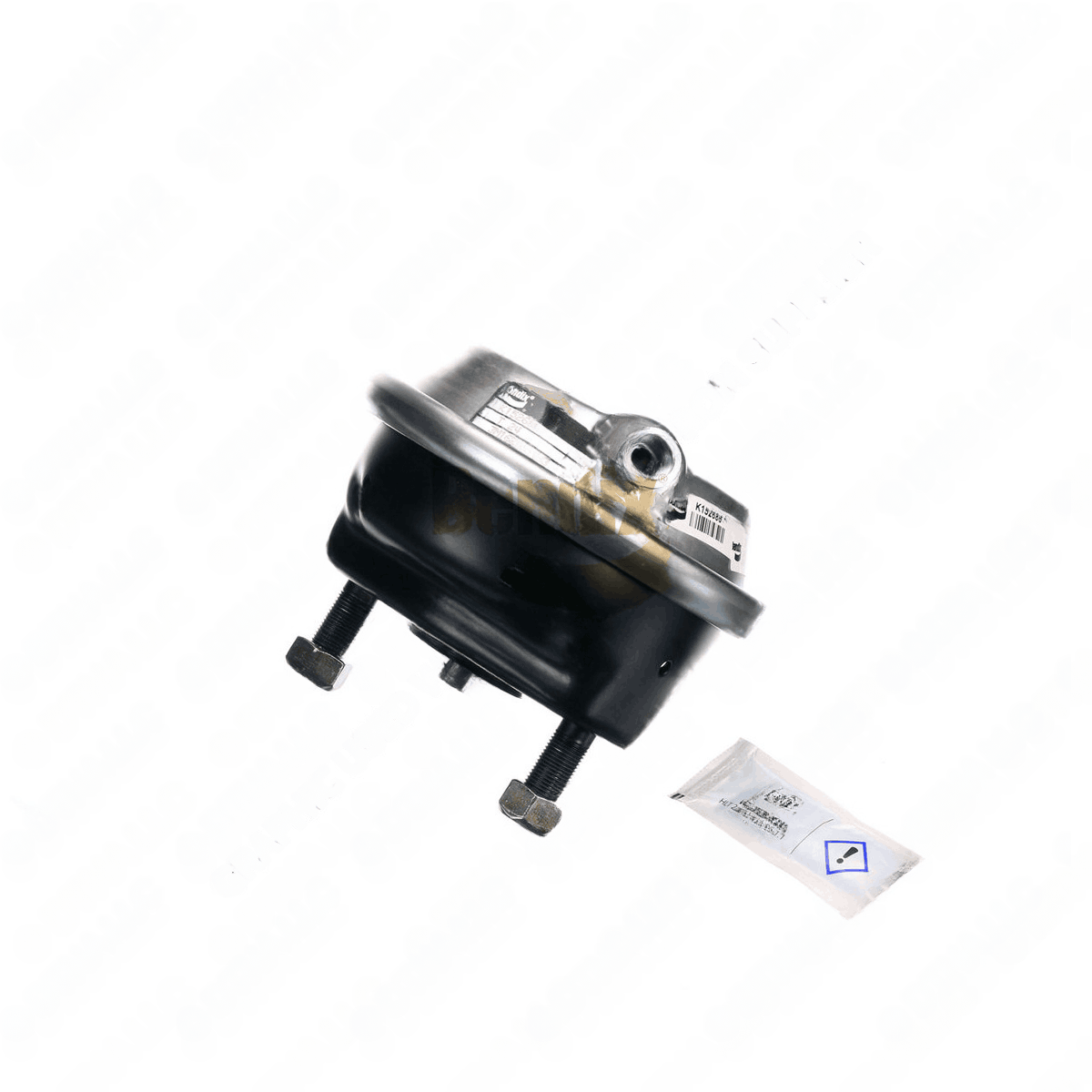

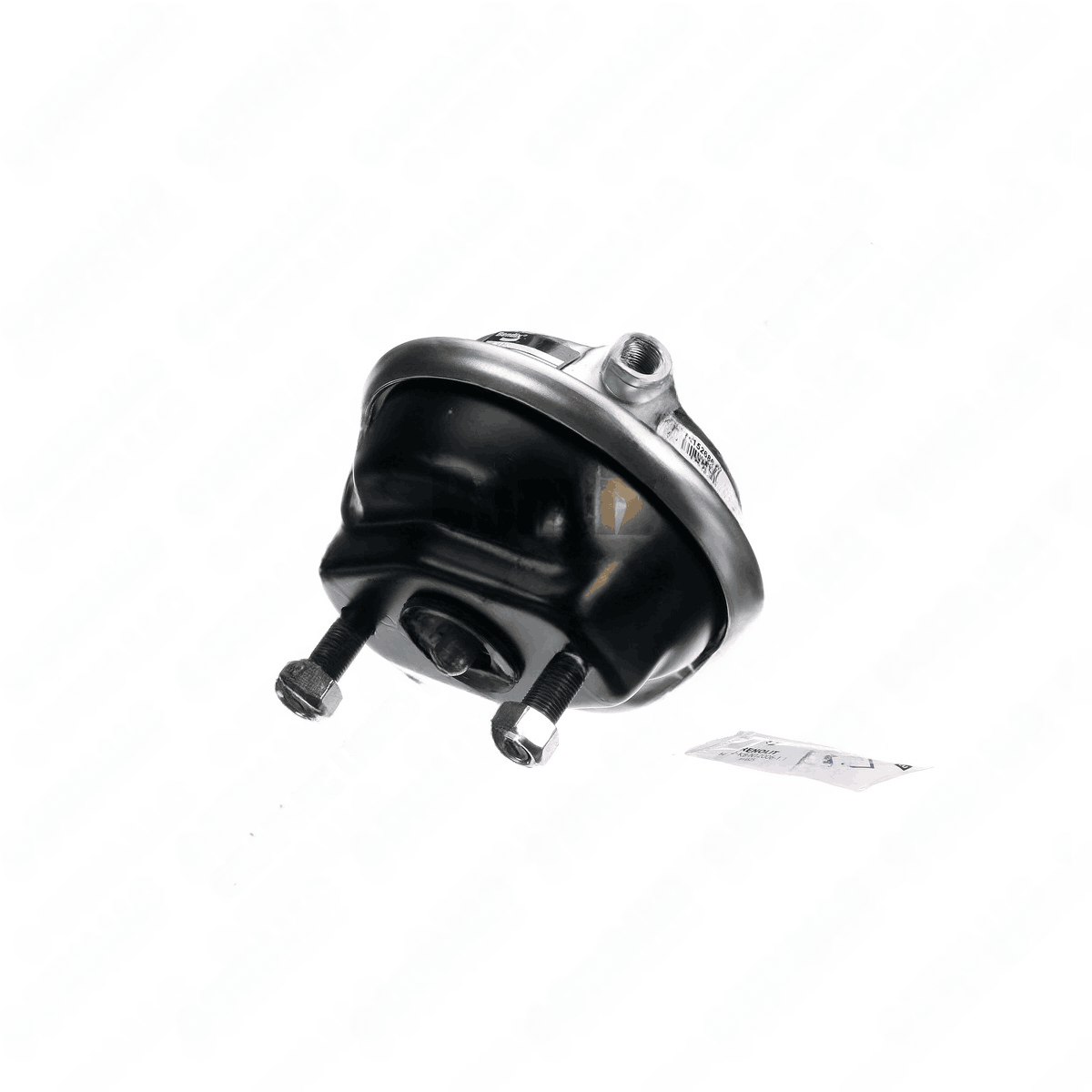

The right‑hand chamber element in the 24‑type family is a precision‑machined actuator component used with Bendix BDx and ADB brake systems. It presents a square footprint of 170 mm by 170 mm with a length near 160 mm, providing a controlled pressure chamber for converting compressed air into linear actuation of the brake mechanism. Orientation as RH ensures correct alignment with mounting brackets and linkages, while the 135 and 215 size identifiers map to porting and actuation characteristics within compatible assemblies. The 24‑type designation emphasizes standardized geometry across fleets, simplifying maintenance and interchangeability. Built to resist vibration and environmental exposure typical of over‑the‑road service, the chamber supports consistent stroke and reliable shoe engagement. VMRS code 013-013-060 places it in the chamber family for planning and service documentation. Cross references are not listed, so verify exact fit with the vehicle’s brake actuator configuration and mounting pattern. Practical applications span heavy‑duty tractor/oem brake systems, construction trailers, and vocational fleets where reliable, repeatable actuation is essential. Category context: 42848.
