K052484
Diaphragm Kit
Bendix

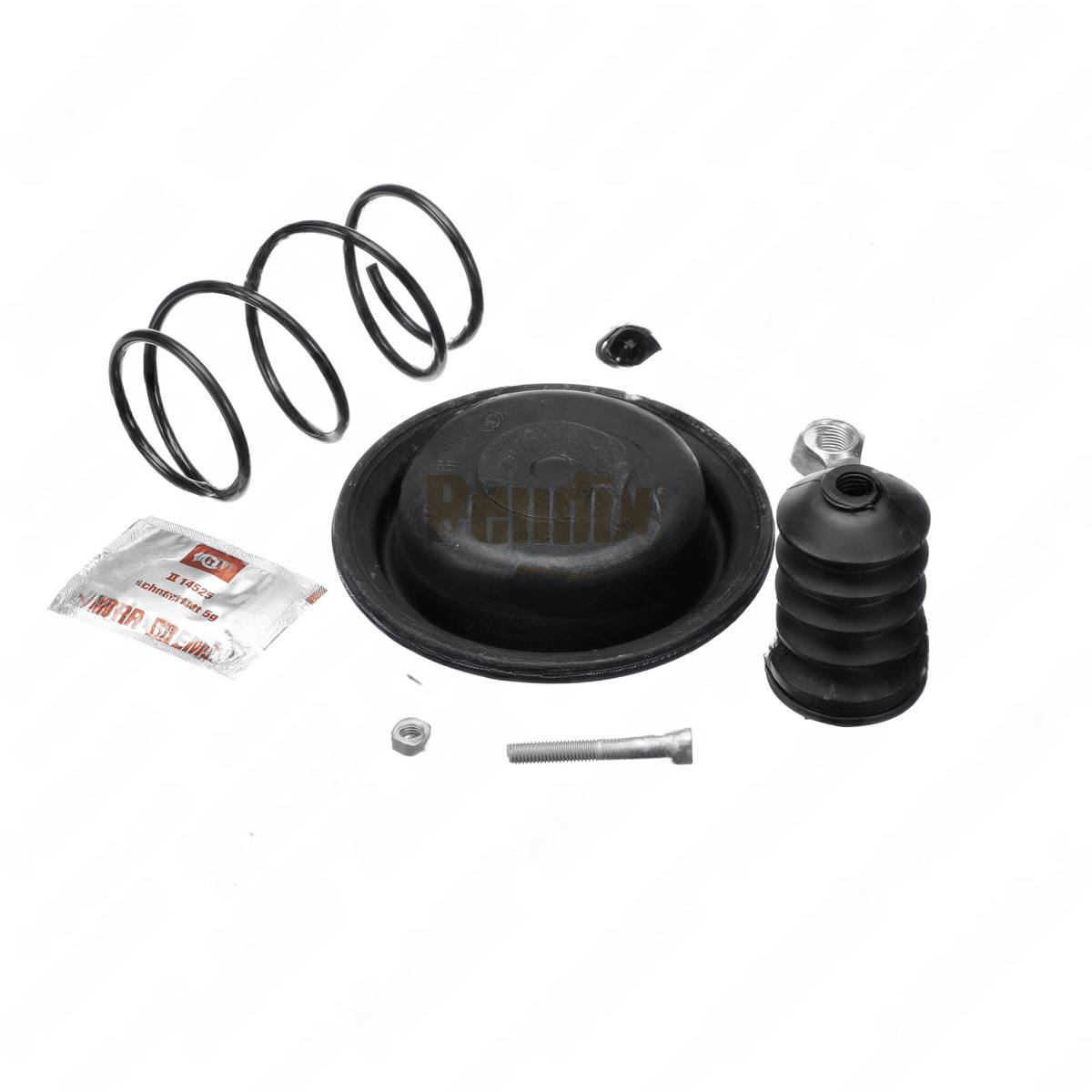

Diaphragm kit provides replacement diaphragms and seals for precision control modules in hydraulic and pneumatic systems used in heavy duty equipment. The assembly footprint measures width 200 mm, height 200 mm, length 400 mm, with a stroke of 2.25 in to restore full travel range. Port threads are 3/8-18 NPTF to ensure secure, flare free connections to standard manifolds. The included diaphragms and seals are designed to tolerate high vibration and broad temperature ranges, maintaining seal integrity and consistent response to control signals. Proper installation reduces leakage paths and preserves actuator life in demanding service. VMRS code 013-010-035 places this kit within the 42848 family for diaphragm related components and support tooling. Cross references none. Category 42848. This kit is suitable for field maintenance or shop rebuilds where a diaphragm based actuator is used, minimizing downtime and preserving performance under load.
