247343N

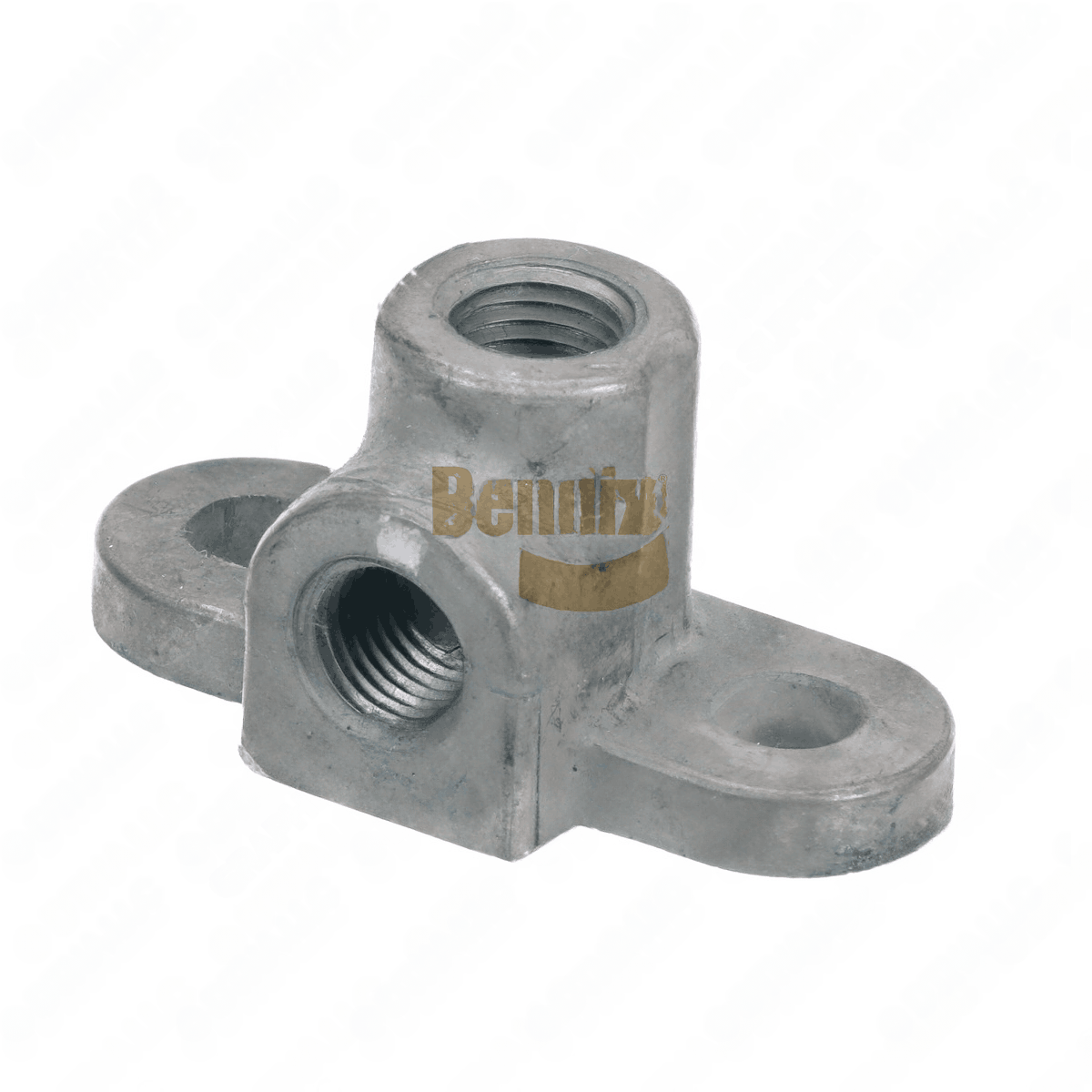

Elbow
Bendix

The elbow fitting provides a routing-friendly connection within hydraulic and pneumatic lines that feed into braking system components. Its design accommodates a switch from straight to angled tubing paths, enabling neat, protected runs that minimize kinks and stress concentrations. The VMRS code 013-010-264 places it squarely within valve and line routing hardware, reinforcing its role in maintaining uninterrupted fluid or air delivery to critical brake controls. Category 42848 contexts this fitting among other line-manipulating accessories used in Bendix brake systems, where reliable routing supports consistent system pressure and response. Benefits include reduced line wear, improved accessibility for inspection and replacement, and enhanced system reliability through robust seals and corrosion-resistant materials appropriate for demanding fleet environments. In practical terms, technicians use this elbow to adapt lines to tight spaces near actuators or valve bodies, ensuring clean, serviceable installations that stand up to vibration, temperature cycling, and exposure to brake fluids.
