205730N

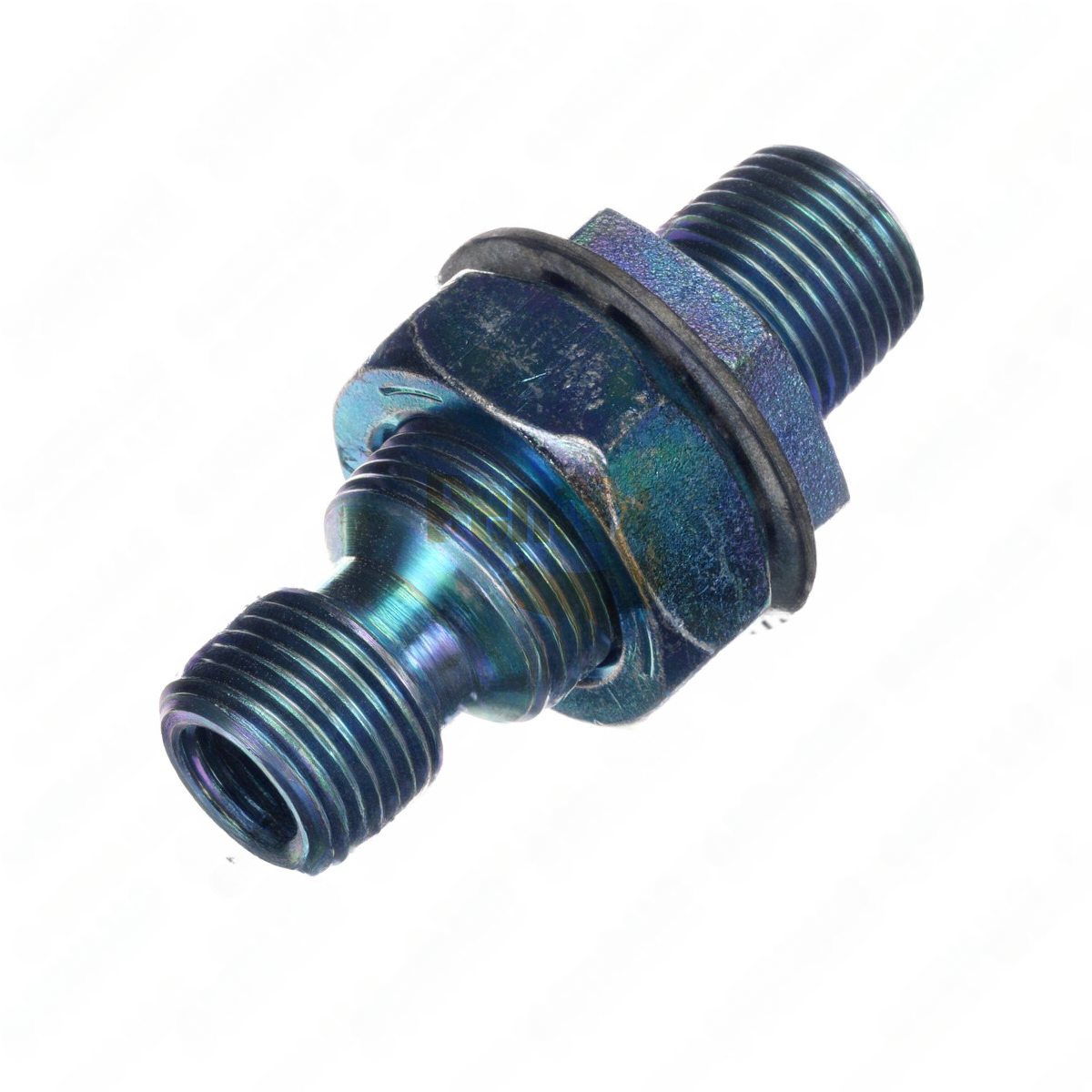

Clamp Stud Assembly
Bendix

This clamp stud assembly provides a versatile, rigid connection for securing components to threaded ports and mounting brackets in fluid and air lines. It measures 2.88 inches in overall length, featuring an external 1/2-14 NPTF male thread (0.50-inch diameter) on one end and an internal 1/4-18 NPTF female thread on the other. The externally threaded portion uses 14 threads per inch, while the internally threaded portion uses 18 TPI, enabling flexible attachment to a variety of port configurations and hardware. Built for reliability in pneumatic and light‑to‑medium hydraulic circuits, the unit supports precise alignment and stable mounting of sensors, brackets, valves, or manifolds. VMRS 013-010-274 places this part within the fluid‑handling family, and category 42848 groups it with essential tubing and pipe adapters. Typical applications include securing brackets to frames, linking hoses to blocks, or mounting auxiliary components where repeatable positioning is required. When installed with appropriate gaskets or thread sealants for NPTF interfaces, it delivers a leak‑tight seal, minimizes vibration, and simplifies fleet maintenance by enabling straightforward part swaps during routine service.
