$66.95
$80.34

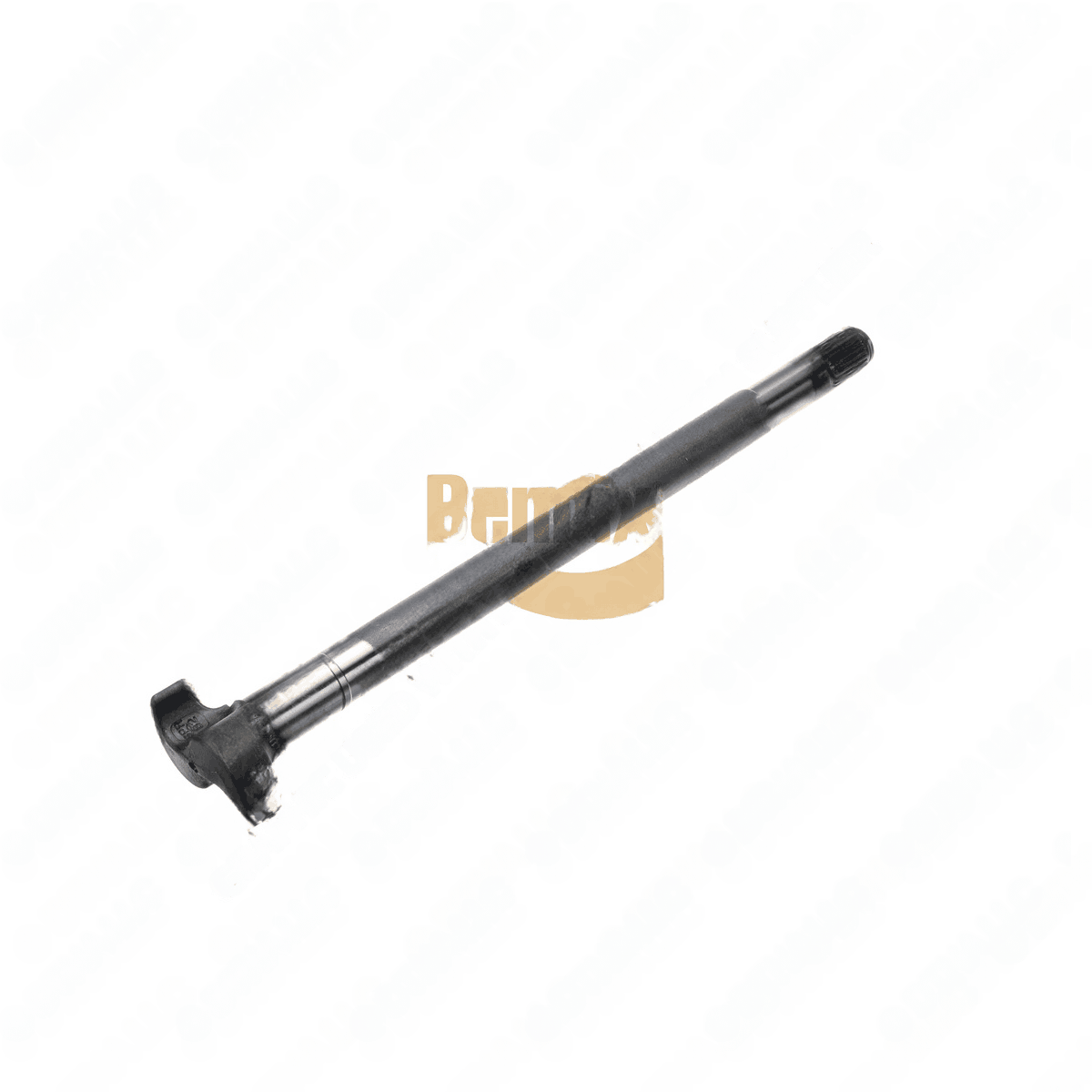

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A cam unit tailored for trailer braking systems with a 16.50 inch brake diameter and a camshaft length of approximately 23.5 inches. It features a 1.50 inch spline diameter and 28 splines, with left side mounting and counterclockwise rotation to align with standard actuation sequences. The design emphasizes precise alignment, rigorous dimensional control, and robust materials to withstand repeated engagement and the associated wear. This configuration supports smooth actuation of brake links and consistent return behavior after application, contributing to stable braking performance and extended component life. The part is intended for integration with other cam and shaft elements in the same family for trailer axles, simplifying maintenance planning and inventory in fleet operations. Cross references are not listed, but VMRS 013-001-031 classifies it among trailer cam and shaft components, with category context 41394 confirming its positioning within the trailer brake system components group.
SPECIFICATIONS
VMRS
013-001-031
Spline Diameter:
1.50 in
Brake Size:
16.50 in
Maximum Brake Diameter:
16.50 in
Length
23.5 in
Spline Quantity:
28
Rotation Direction:
Counter Clockwise
Head Type:
Style B
Axle Type:
Trailer
