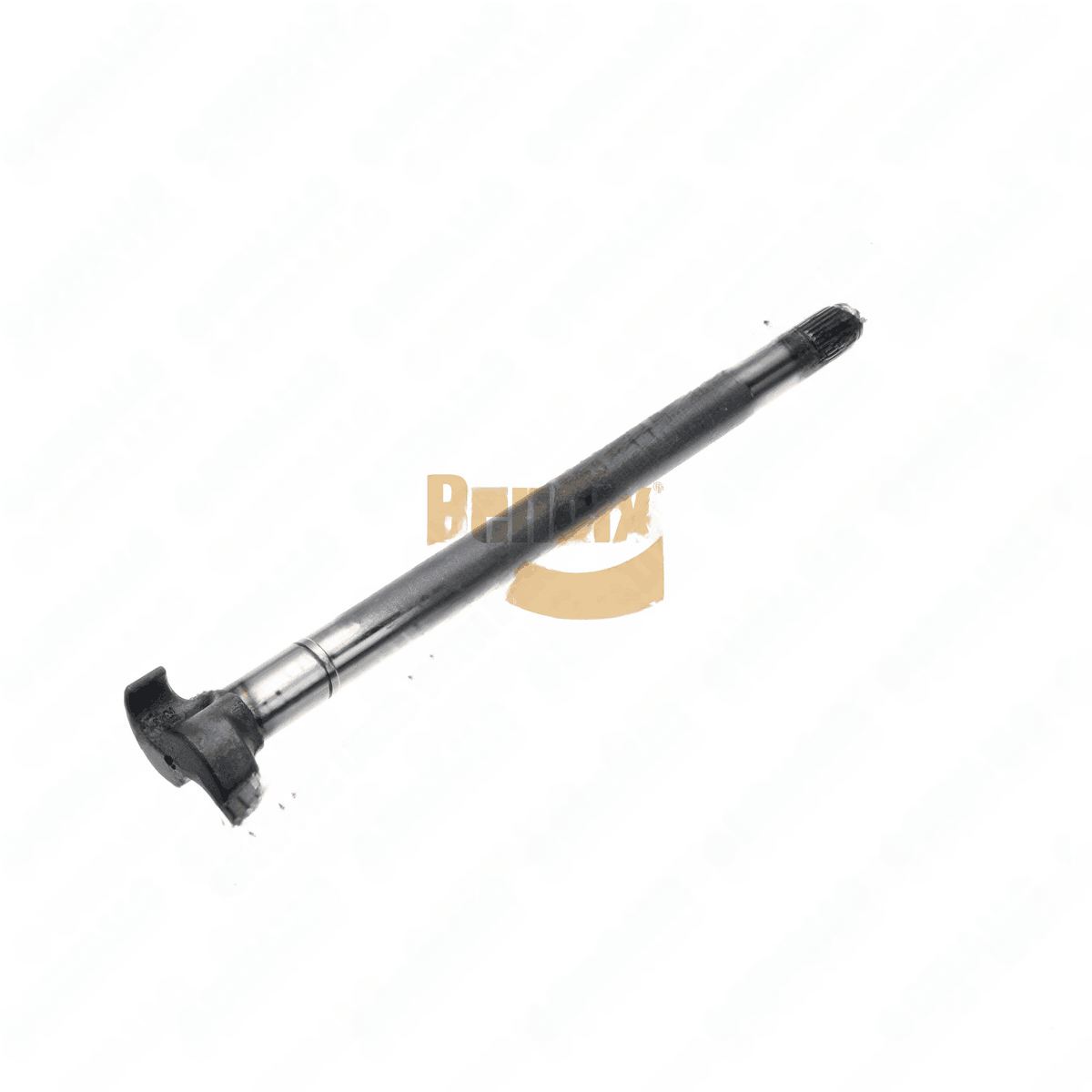

M16WKL25-225N
Cam
Bendix

This cam is part of a cohesive family designed for trailer axles, delivering reliable actuation through a 16.50 inch brake interface and a 22.45 inch shaft length. The cam features a 1.50 inch spline diameter and 28 splines, with mounting positioned on the left side and rotation direction set to counterclockwise to align with standard braking system conventions. The design emphasizes precise machining, balanced mass distribution, and durable surface finishes to withstand repeated engagement and environmental exposure. Such a component is essential for maintaining even distribution of braking force, reducing pedal travel, and preventing asymmetrical wear on drums or rotors. Its compatibility with other cam and shaft elements in the same family allows for straightforward field replacement and reduced inventory complexity. Cross references are not listed; VMRS 013-001-031 categorizes it with trailer axle cam components, and category context 41394 places it among related trailer cam shaft assemblies used in heavy duty braking installations.
