K201180N

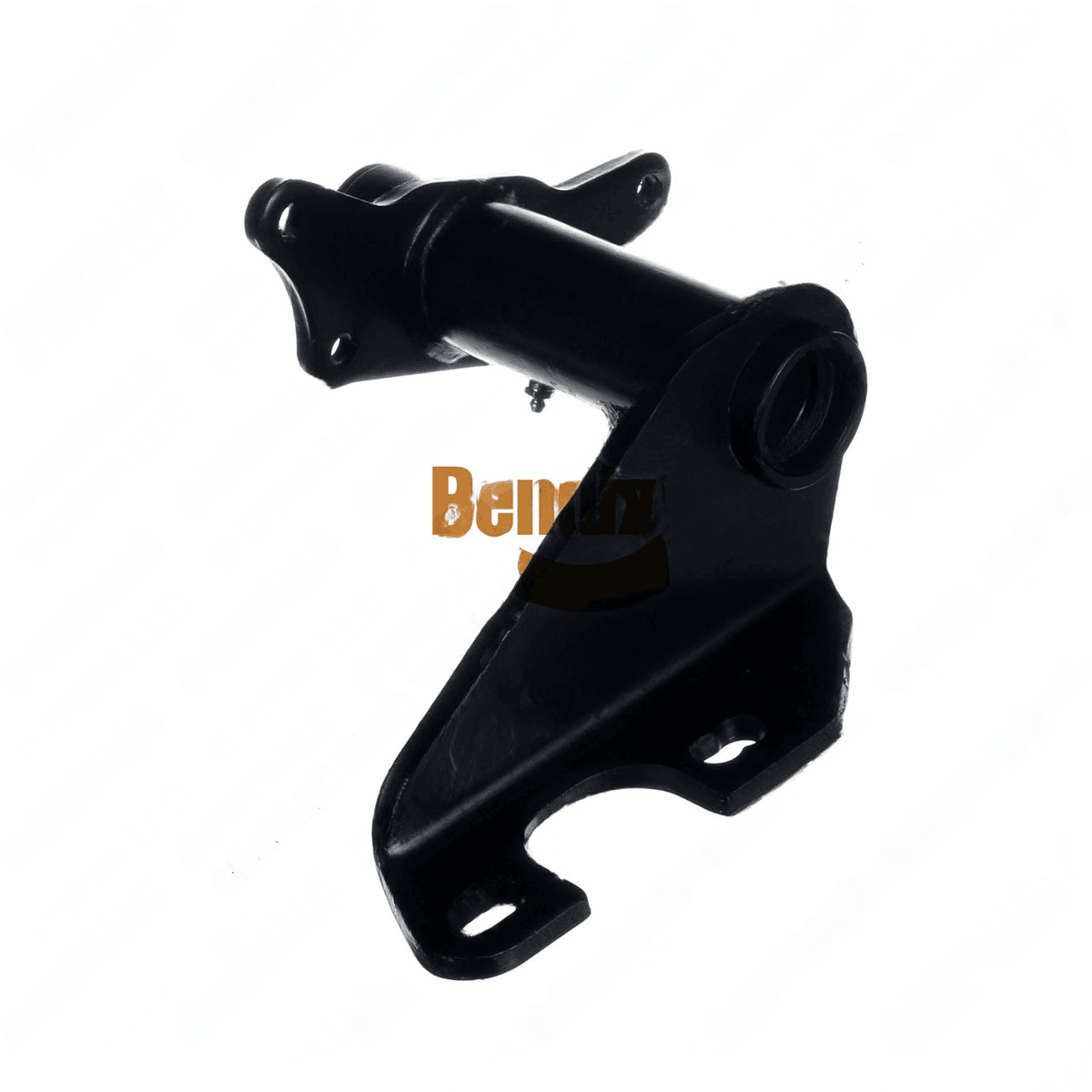

Bracket Assembly
Bendix

Bracket assembly provides a robust mounting interface with defined geometry to secure related components in place and preserve alignment under load. The documented footprint of 365 mm width, 292 mm height, and 451 mm length delineates a substantial structural support that resists deformation from vibration, road shocks, and temperature changes. VMRS 013-010-272 places these brackets in the mounting and bracket family, while category 41390 identifies them as heavy‑duty frame or equipment mounting solutions. In practical terms, technicians verify fitment against the vehicle’s frame and neighboring hardware to ensure bolt patterns align and load paths are preserved. Proper bracket selection minimizes misalignment, reduces wear on hoses and cables, and helps maintain seal integrity for connected lines. Although cross references are not listed for this version, it shares a common class with other brackets in the family to support consistent geometry across fleets and model ranges.
