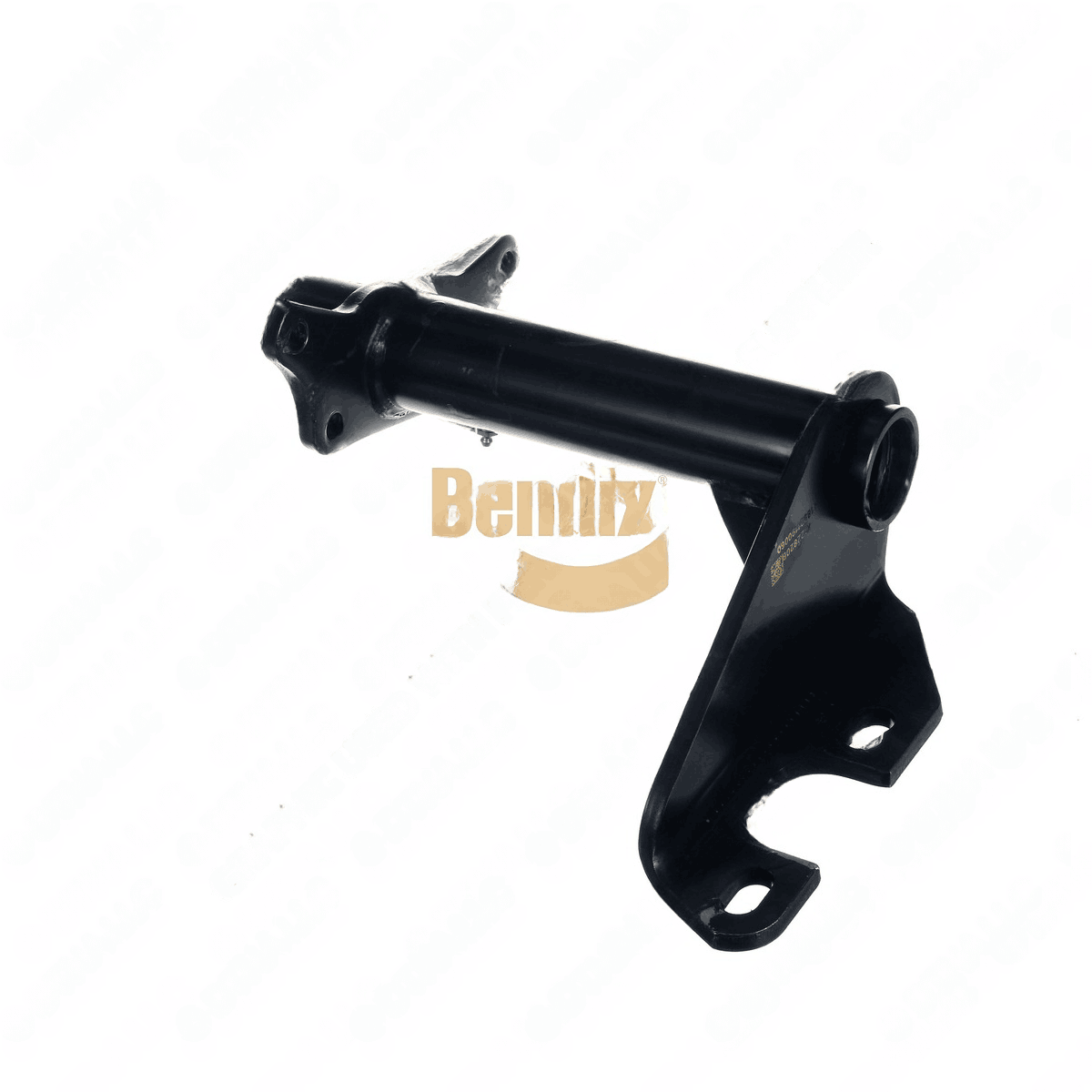

K122820N
Bracket Assembly
Bendix

This assembly provides a sizable mounting platform with a 365 mm width, 292 mm height, and 388 mm length, designed to anchor multiple suspension or brake-related components to the frame. The center-to-center length is calibrated to align with common adjacent hardware, promoting uniform load paths and reducing localized stress. The VMRS classification confirms its role within the suspension mounting subsystem, aiding technicians during service planning and part replacement. While cross references are not listed, the geometry is intended for straightforward integration with Bendix-compatible brackets and arms, supporting efficient installation and inspection in fleet maintenance programs. In field operation, it helps ensure consistent component alignment, stable ride quality, and reliable performance of critical interfaces under varied road and load conditions.
