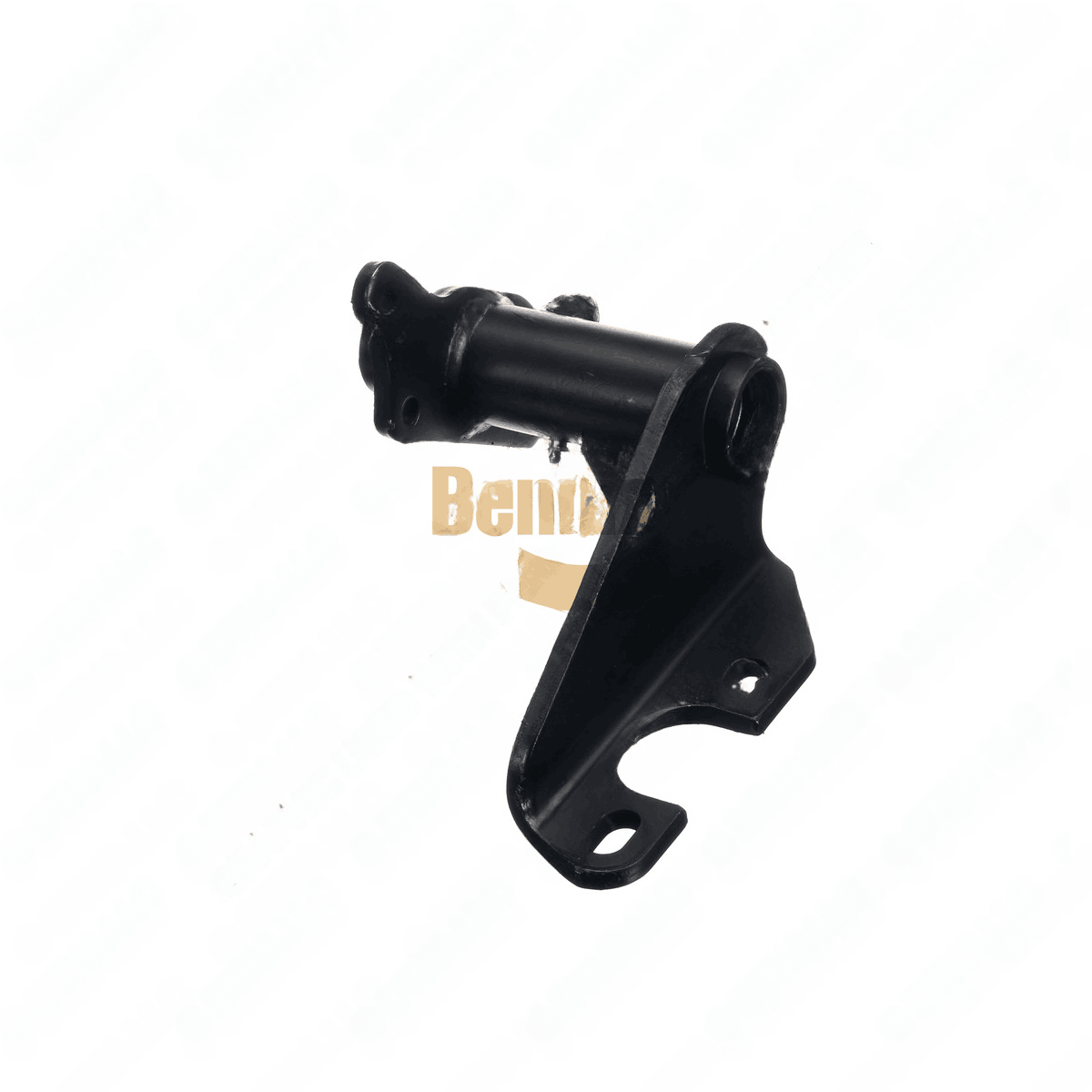

K121564N
Bracket Assembly
Bendix

A large‑format mounting frame intended to consolidate multiple actuation links within a single assembly envelope. The measured width of 365 mm, height of 292 mm, and length of 269 mm translate to a compact yet rigid frame suitable for modern drum brake installations requiring several linkage points. The overall length of 10.56 inches aligns with common frame spacing and bracket families, enabling straightforward compatibility with related components in the 10.56 inch bracket lineage. The construction emphasizes resistance to impact, vibration, and corrosion to maintain precise alignment of shoes and levers during heat cycles and heavy braking. VMRS 013-010-272 places this item in the same bracket subset for easy catalog lookup and cross‑reference. Installation checks should include hole pattern verification, anti‑corrosion coating condition, and clearance with adjacent lines or hoses to ensure reliable braking performance in heavy‑duty trucks, construction equipment, and emergency response vehicles.
