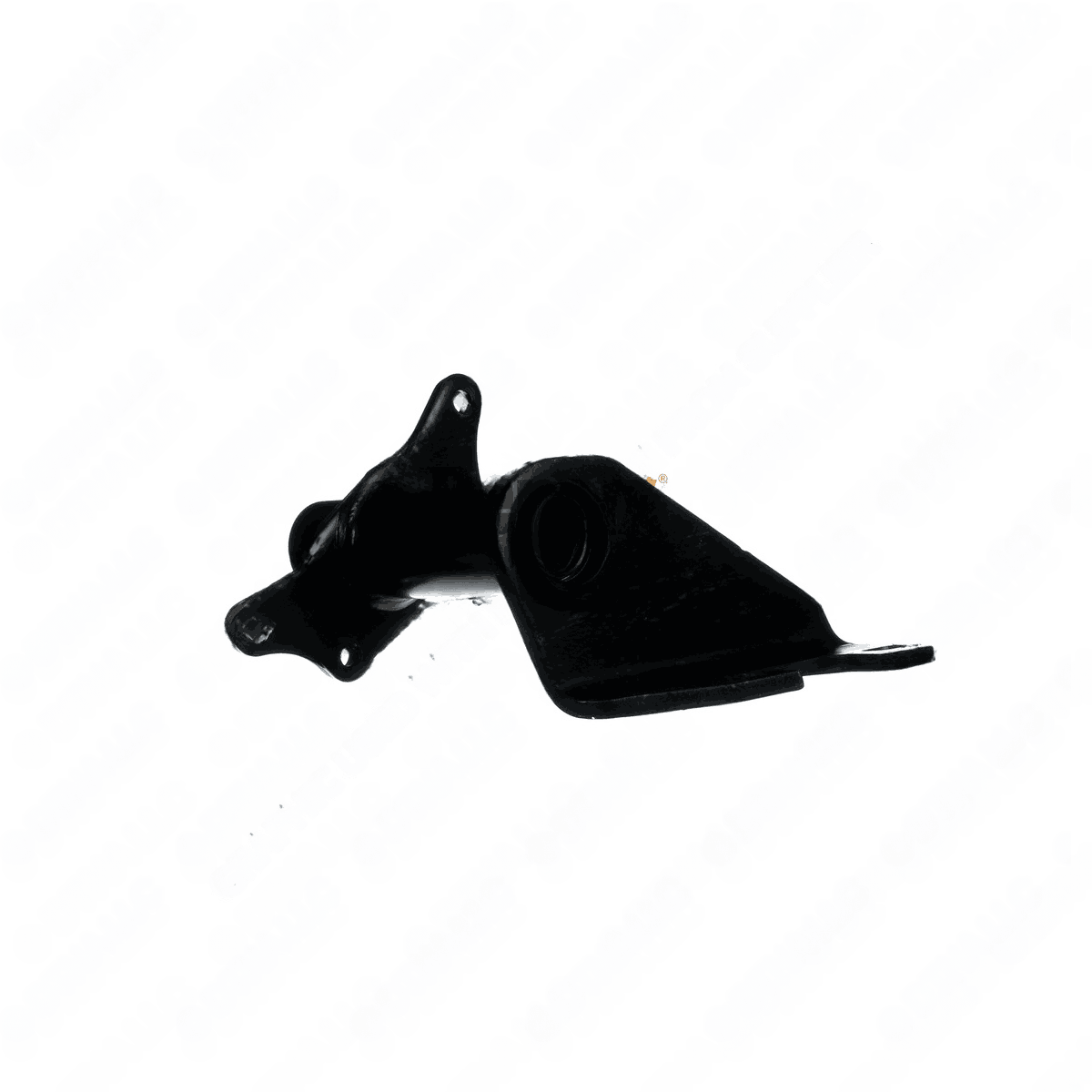

K121563N
Bracket Assembly
Bendix

A high‑rigidity bracket with a center‑to‑center spacing of 10.56 inches and a full‑arm construction designed to resist flex under heavy braking. This configuration delivers a stout mounting point for actuator levers and shoe linkage, maintaining accurate geometry under load and across temperature changes. The part is designed to integrate with standard drum brake housings and is compatible with related K121563N family components for retrofit and fleet standardization. Maintenance emphasis includes checking for wear at mounting pins, assessing weld integrity, and ensuring corrosion resistance to preserve alignment of the cam/lever assemblies and even shoe wear. VMRS 013-010-272 supports classification within the bracket subsystem for efficient planning and cross‑reference. When properly installed, the assembly helps deliver consistent braking performance, longer lining life, and predictable response in highway, vocational, construction, and off‑road applications.
