K119629

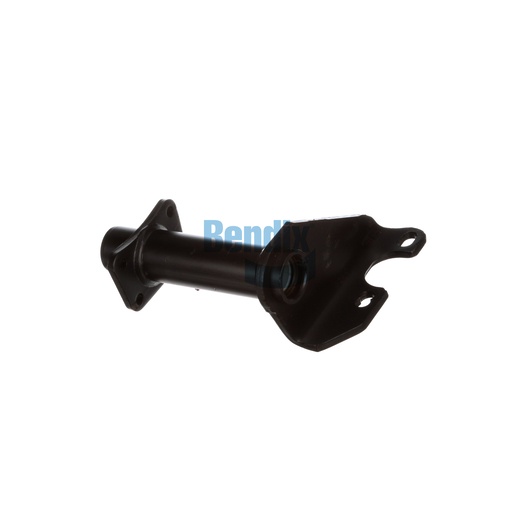

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a high-performance component designed for use in foundation drum brake systems, ensuring your vehicle operates safely and effectively. This assembly features a single gusset and a full arm style, which provides superior strength and stability under high-stress conditions. With an arm angle of 88° clockwise and a length measured at 12.00 inches from centerline to centerline, it offers seamless integration into your braking system. Designed with both nylon and bronze bushings, this assembly reduces friction and wear, promoting longevity and consistent braking performance. The thoughtful engineering behind this bracket assembly ensures it withstands the demands of commercial use, making it a reliable choice for heavy-duty applications. By choosing this part, you’re investing in the safety and performance of your vehicle. For sourcing genuine Bendix OEM parts, Source One Parts Center is the premier destination, dedicated to delivering exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.00
Height
292.0 mm (11.5 in)
Length
305.0 mm (12.01 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
88° CW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
