K083151

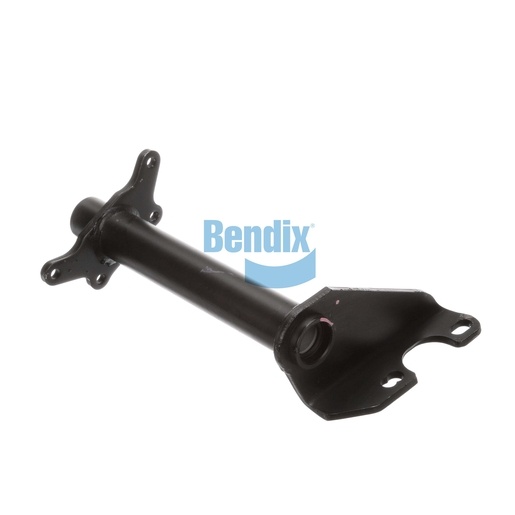

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial part of your foundation drum brake system, designed for optimal performance and reliability. This assembly features a full arm style and a camshaft bracket angle of 64° CW, ensuring that all components are aligned correctly for effective braking. With a net weight of 7.3 kg, this assembly is robust and built to withstand the stresses of commercial vehicle applications. Measuring 17.69 inches in length, it fits various configurations and promotes seamless integration with other braking components. The use of durable nylon bushings minimizes friction and wear, enhancing the overall lifespan of your braking system. When you need a reliable replacement part, look no further than this Bendix Bracket Assembly. Source One Parts Center is your premier destination for genuine Bendix OEM parts, providing the quality and performance your commercial vehicle deserves.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
16.1 lb
