$279.95
$363.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

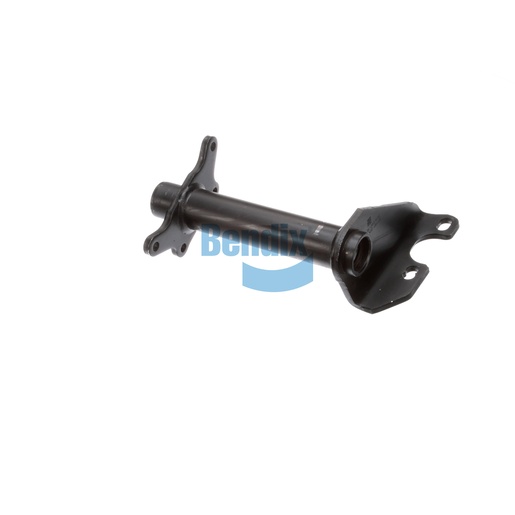

The Bracket Assembly from Bendix is meticulously designed to support your foundation drum brakes, ensuring they operate efficiently and safely. This assembly features a full arm style with nylon bushings, enhancing its durability while providing reliable performance under heavy loads. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 69° clockwise, this component is versatile enough for various applications, making it an ideal choice for fleet maintenance. Weighing 6.7 kg (14.68 lb), it offers a robust solution that minimizes the risk of failure, thus contributing to enhanced safety on the road. The assembly’s design promotes straightforward installation and maintenance, ensuring fleet operators can keep their vehicles running smoothly. If you require a dependable part to maintain your braking system, this bracket assembly is essential. Choose Source One Parts Center for your Bendix OEM parts needs, where quality and reliability are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.68 lb
