$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

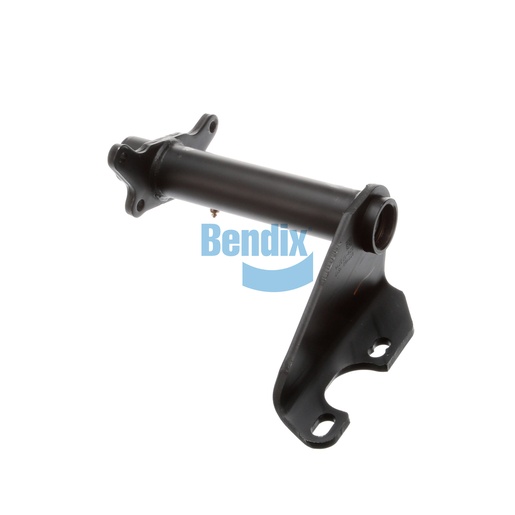

Bendix's Bracket Assembly is expertly designed to provide reliable support and stability for your truck's foundation drum brakes. With a single gusset and full arm style, this assembly is built to handle the rigorous demands of heavy-duty applications. The nylon bushings in both inboard and outboard positions ensure enhanced durability and reduced wear over time. Featuring a camshaft bracket angle of 69° CCW, it facilitates precise movement for improved braking efficiency. This assembly measures between 5.50 to 6.00 inches in slack length, making it versatile and adaptable for various vehicle models. Despite its robust construction, it weighs only 14.7 pounds, making installation straightforward and efficient. When it comes to dependable braking performance, choosing genuine Bendix products is essential. Source One Parts Center is your trusted source for authentic Bendix parts, guaranteeing quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.7 lb
