K083056

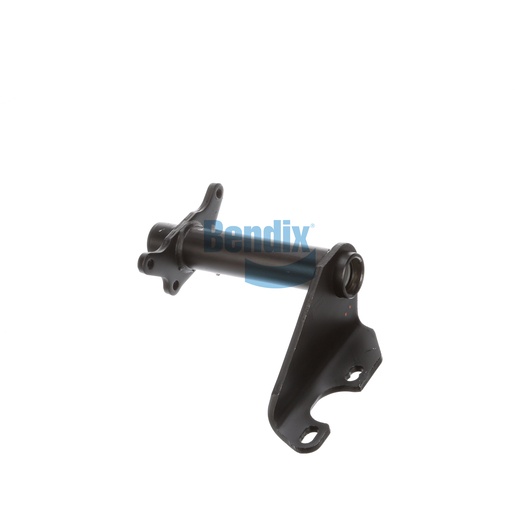

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to deliver robust support for air chambers and camshafts in foundation drum brake systems, ensuring optimal performance and safety. Manufactured in the USA, this assembly features an innovative design with a full arm style and nylon bushings that reduce friction and wear. The camshaft bracket angle is 90° CCW, with an adjustable slack length of 5.50 to 6.00 inches, providing flexibility for various installation scenarios. The bracket’s centerline length of 14.62 inches makes it ideal for heavy-duty applications, ensuring a secure fit and reliable operation. This assembly is essential for maintaining the efficiency of your braking system. At Source One Parts Center, we pride ourselves on offering genuine Bendix OEM parts that guarantee quality and performance for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
