K083047

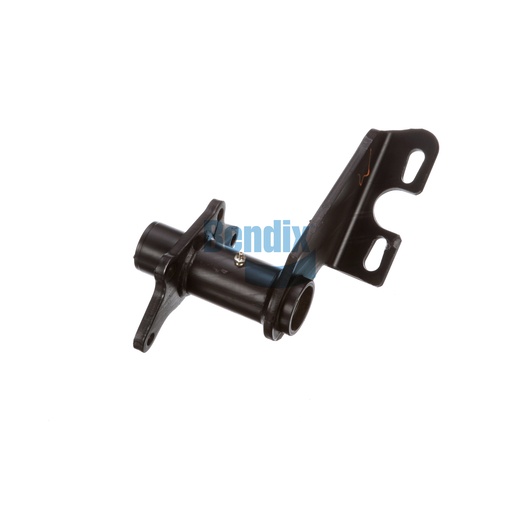

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to enhance the performance and reliability of your foundation drum brakes. This assembly features a scalloped arm style and durable nylon and bronze bushings, ensuring that your braking system operates smoothly and efficiently. With a camshaft bracket angle of 312° CW, this assembly is tailored to optimize brake function under various conditions. Weighing in at 4.8 kg, it offers a robust construction without adding unnecessary weight to your vehicle. Its length of 9.31 inches from centerline to centerline guarantees a precise fit for optimal performance. By choosing genuine Bendix parts from Source One Parts Center, you ensure that your vehicle maintains peak performance and safety on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.69 lb
