K083039

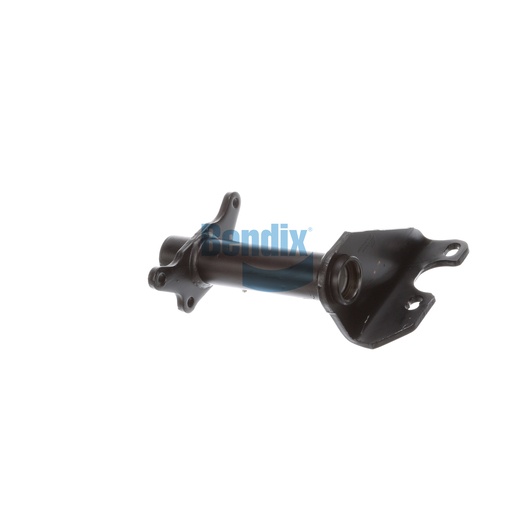

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the reliability of your vehicle's braking system with the Bendix Bracket Assembly, designed specifically for foundation drum brakes. This assembly features a single gusset and full arm style for superior strength and stability, ensuring your air chambers and camshafts are securely supported. The nylon bushings provide smooth operation, while the adjustable slack length allows for compatibility with various configurations. With a camshaft bracket angle of 90 degrees CW, this assembly is engineered for precision alignment, optimizing your braking performance. Crafted in the United States, this bracket adheres to high standards of quality and durability. Source One Parts Center is the leading provider of genuine Bendix OEM parts, ensuring you have access to the best components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.46 lb
