K083038

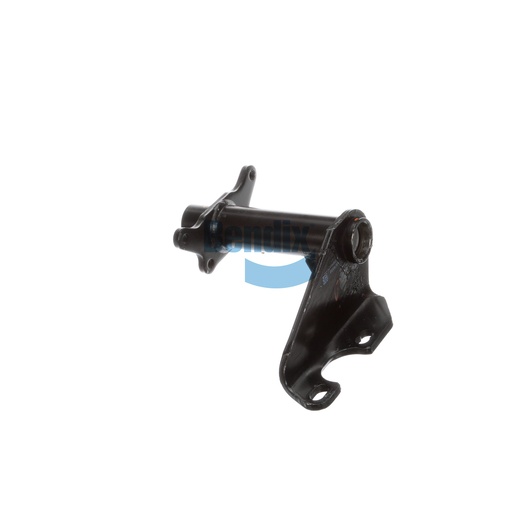

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a key component in foundation drum brakes, engineered to provide superior strength and durability. With a single gusset design and full arm style, it ensures a secure connection that enhances overall brake performance. This assembly features bronze bushings for improved longevity and a camshaft bracket angle of 90° CCW, allowing for precise alignment during installation. Weighing 6.3 kg (13.81 lb), this assembly is designed to meet the demanding requirements of commercial vehicles. With a slack length range of 5.50 to 6.00 inches, it is versatile enough for multiple setups. Source One Parts Center is the ideal place to purchase genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.81 lb
