K083025

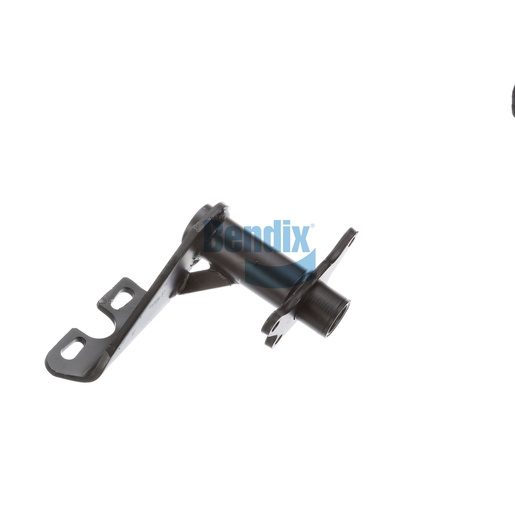

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in maintaining the integrity of your Bendix foundation drum brake system. Built to last, this assembly is engineered for strength and reliability, ensuring that your braking system operates effectively under various conditions. With a lightweight design of just 11.52 lbs, it provides excellent performance without adding unnecessary weight to your vehicle. The assembly features high-quality materials that resist wear and corrosion, contributing to the overall durability of your braking system. Its straightforward installation process allows for quick replacements, minimizing downtime and maximizing efficiency on the road. When looking for authentic Bendix OEM parts, Source One Parts Center is your premier destination, offering a wide selection of high-quality components tailored for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.52 lb
