K083024

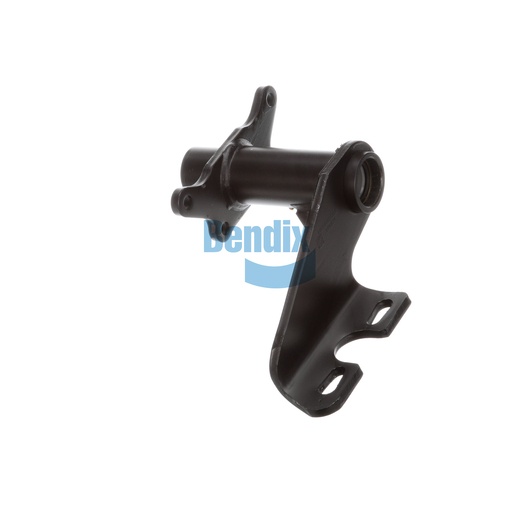

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is meticulously crafted to provide exceptional support and stability for your commercial truck's braking system. Featuring a scalloped arm style and durable nylon and bronze bushings, this assembly guarantees a secure fit for air chambers and camshafts, ensuring optimal braking performance. Its design includes a camshaft bracket angle of 90 degrees and a single gusset for enhanced strength, making it suitable for heavy-duty applications. Manufactured in the United States, this bracket assembly reflects Bendix's commitment to quality and reliability. By investing in this component, you can help reduce the risk of wear and enhance the efficiency of your braking system. For the best genuine Bendix OEM parts, choose Source One Parts Center, your trusted partner for commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.54 lb
