$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

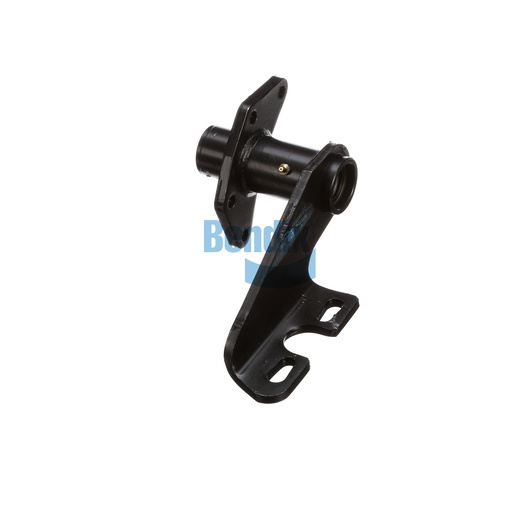

This Bracket Assembly is engineered by Bendix to provide reliable support for air chambers and camshafts in drum brake systems. With a scalloped arm style and a camshaft bracket angle of 324° CCW, this bracket offers both strength and adaptability in various configurations. The combination of nylon inboard bushing and bronze outboard bushing ensures durability while minimizing wear over time. Weighing 4.6 kg, it is designed for heavy-duty applications and is manufactured in the United States, reflecting Bendix's commitment to quality. For genuine Bendix OEM parts, look no further than Source One Parts Center, the best choice for reliable and authentic components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
324° CCW
Length (Slack Length)
5.50 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.04 lb
