$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

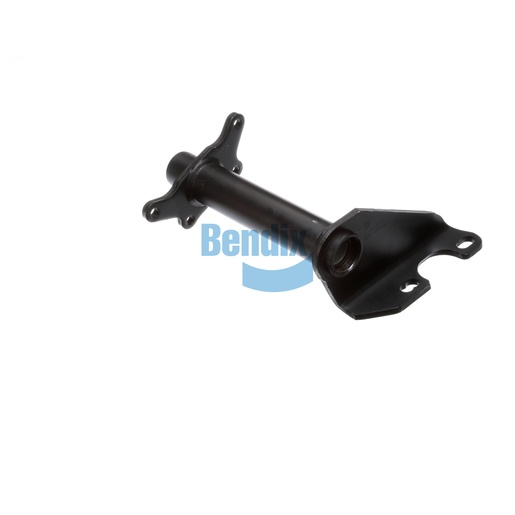

The Bendix Bracket Assembly is a vital component for ensuring the optimal performance of your drum brake systems in commercial vehicles. Designed with a robust full arm style and nylon bushings, this assembly provides exceptional durability and stability. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 70° clockwise, it facilitates precise movement, enhancing the overall effectiveness of the braking system. This assembly is crucial for maintaining safety and reliability on the road, especially in heavy-duty applications. Trust Source One Parts Center for authentic Bendix OEM parts, ensuring that your vehicle operates at its best under all conditions.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
15 lb
