$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

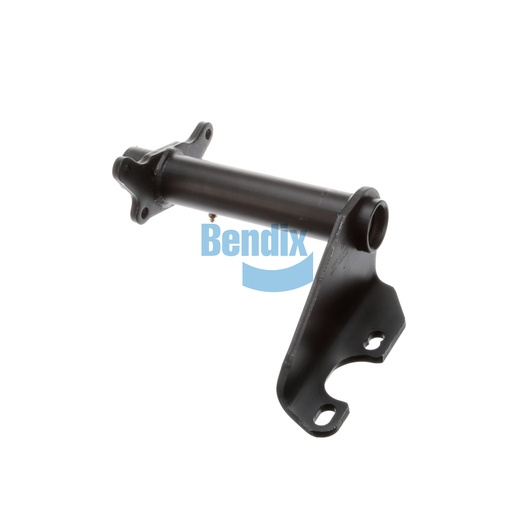

The Bendix Bracket Assembly is a crucial component designed to enhance the functionality of your commercial vehicle's braking system. This bracket features a full arm style and is equipped with a single gusset, ensuring stability and strength in various driving conditions. With a camshaft bracket angle of 70° counterclockwise and dimensions that accommodate slack lengths of 5.50 to 6.00 inches, it provides a tailored fit for seamless integration into your braking system. The use of nylon and bronze bushings minimizes friction and wear, contributing to improved durability and performance. This assembly supports the air chamber and camshaft, promoting efficient brake operation and safety on the road. When you choose to purchase genuine Bendix parts, Source One Parts Center is your premier source, guaranteeing authenticity and quality for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.85 lb
