K082989

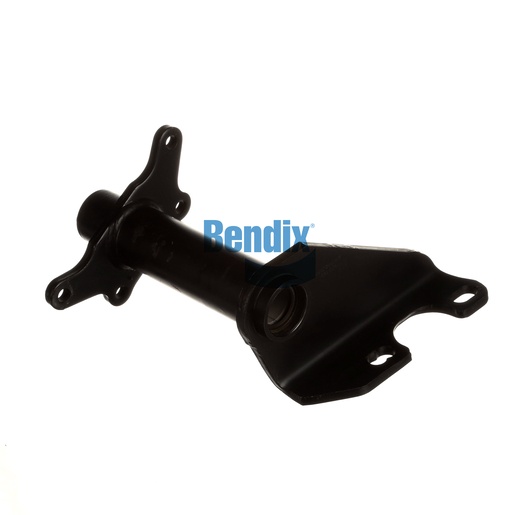

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a critical component designed to provide support and stability to the foundation drum brake systems of commercial vehicles. Its full arm style and single gusset design ensure that it withstands the rigors of heavy-duty use, offering both strength and reliability. Featuring durable nylon and bronze bushings, this assembly minimizes wear and enhances longevity, making it an excellent choice for fleet maintenance. With an adjustable slack length of 5.50 inches and a camshaft bracket angle of 323° CW, it allows for precise adjustments and easy installation across various vehicle models. For those seeking top-quality genuine Bendix OEM parts, Source One Parts Center is your trusted supplier, committed to excellence.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
