K082986

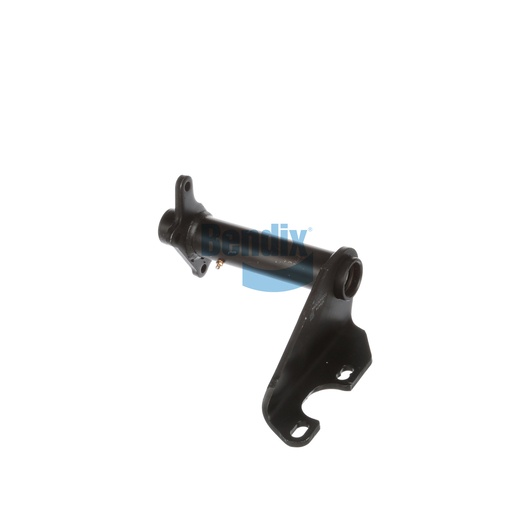

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for foundation drum brakes, providing robust support for critical parts such as air chambers and camshafts. This assembly is designed with a full arm style, ensuring optimal load distribution and enhancing overall braking efficiency. The assembly features a camshaft bracket angle of 30° counterclockwise, promoting precise alignment and effective operation within the braking system. Weighing in at 6.4 kg (14.0 lb), it is designed for durability without compromising on ease of installation. Proudly made in the USA, this part meets Bendix's high standards for quality and reliability. When it comes to maintaining your truck's braking system, investing in this genuine OEM part is a smart choice. Source One Parts Center is the best source for authentic Bendix components, providing you with the highest quality parts for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Camshaft Bracket Angle
30° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
