K082976

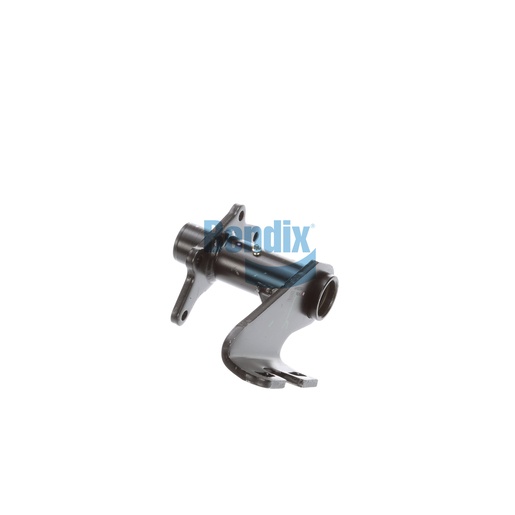

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly engineered to support your air chamber and camshaft, ensuring the stability and reliability of your braking system. With a strong construction featuring a scalloped arm style and durable nylon and bronze bushings, this assembly is designed for heavy-duty applications. The adjustable slack length of 5.50 IN provides flexibility for various installations, while the camshaft bracket angle of 310° CCW ensures optimal alignment. This bracket not only enhances the performance of your braking system but also contributes to a safer driving experience. For all your Bendix OEM parts, trust Source One Parts Center to provide you with the best options on the market.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
310° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
